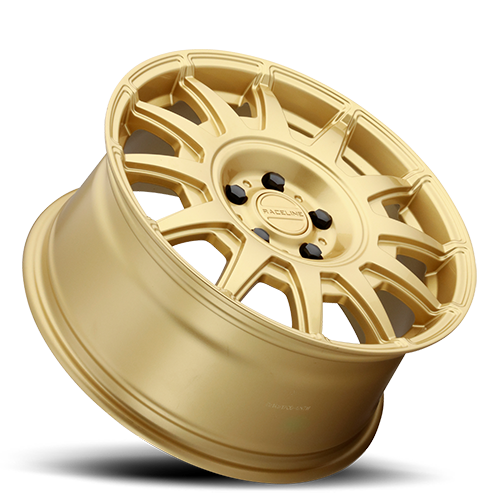

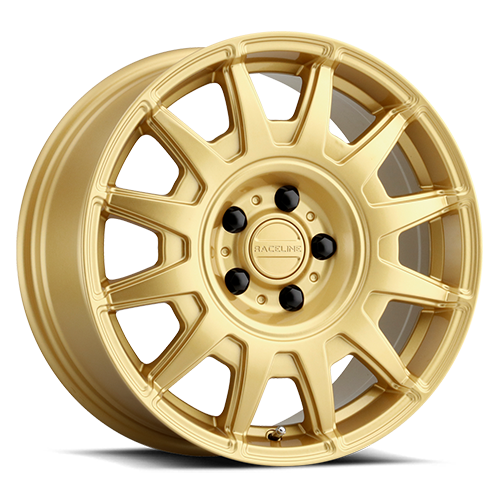

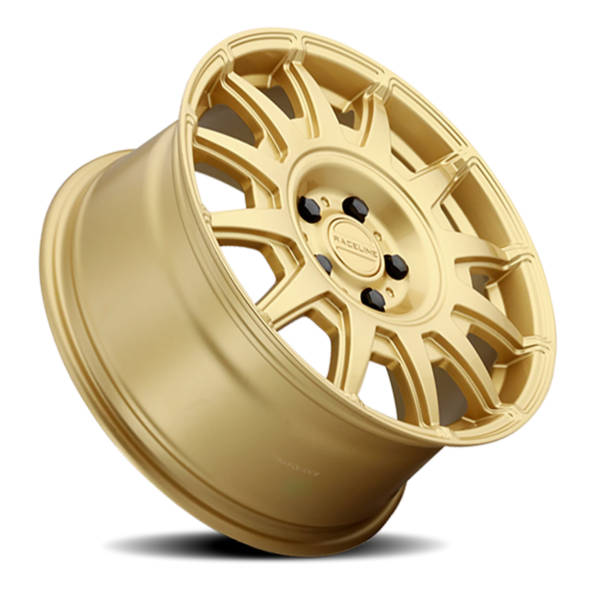

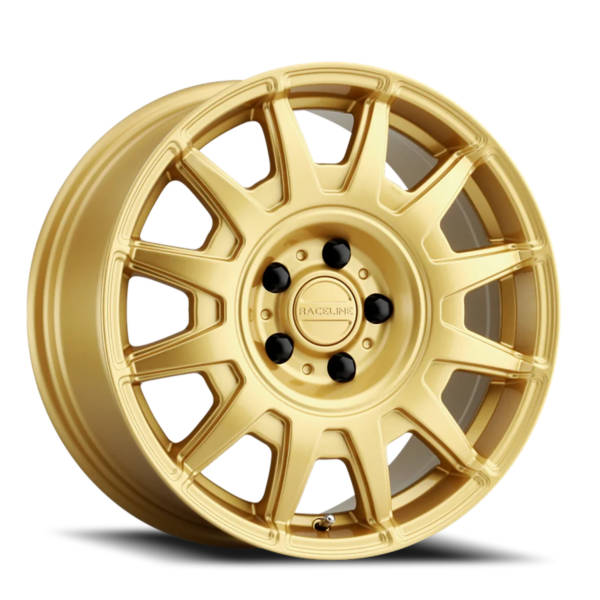

Raceline 401GD Aero
Raceline has done it again with the Aero, a rally-inspired multi-spoke wheel with a 12-window design. This rugged wheel looks and feels solid, truly emphasizing a sense of enhanced strength and durability.
Constructed from heavy duty A356 aluminum, the Aero earns its name by being both light and strong. Not only does it easily pass or exceed all DOT standard load ratings, it also includes a Lifetime Structural Warranty.
This wheel features a 12-spoke webbed design with machine etched spokes layered over a slightly larger spoke and hub backing. Dimension is further added with its etched outer lip design. Featuring a five bolt design and color matched snap-in logo cap, the Aero doesn’t let you forget where it came from.
The Aero comes in 15-18” diameters and comes in hub centric fitments for select vehicles. It comes in satin black or gold finishes to suit any taste or aesthetic.
The Raceline 401 Aero brings strength AND style to your ride or rig!
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 15.0" - 17.0" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 7.0" - 8.0" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-100.0 - 5-114.3 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | 15 - 40 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 72.62 |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 1850.0 LBS |
