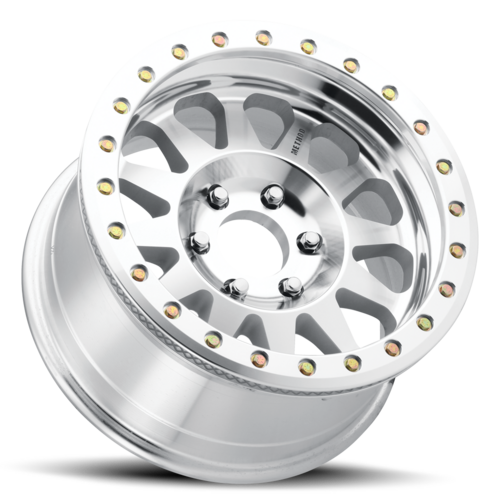

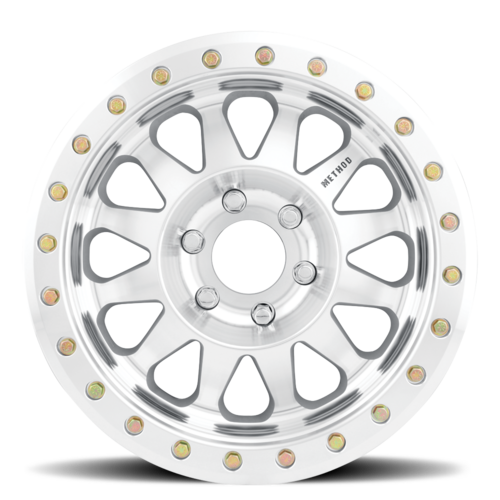

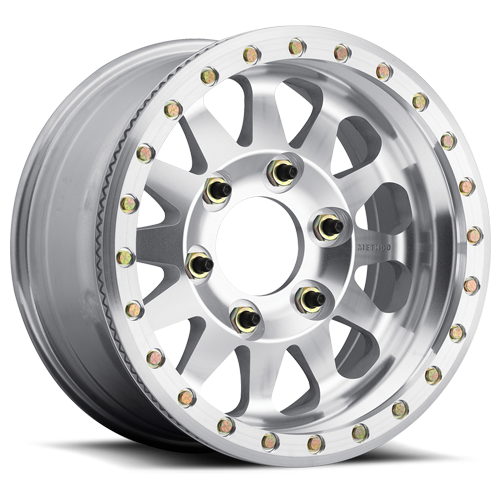

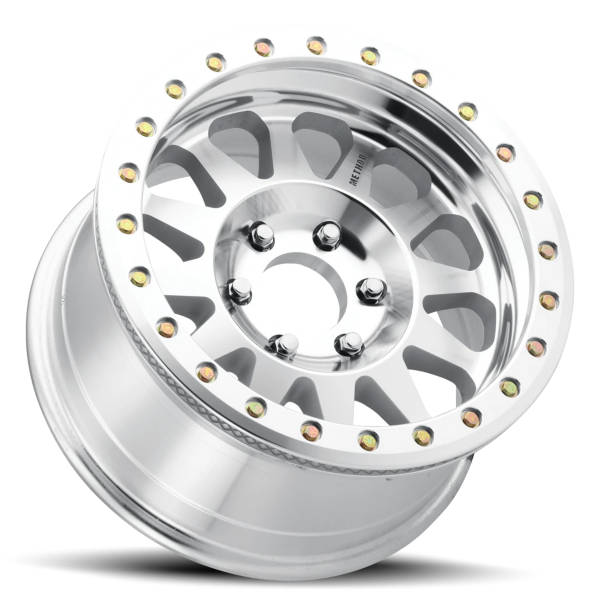

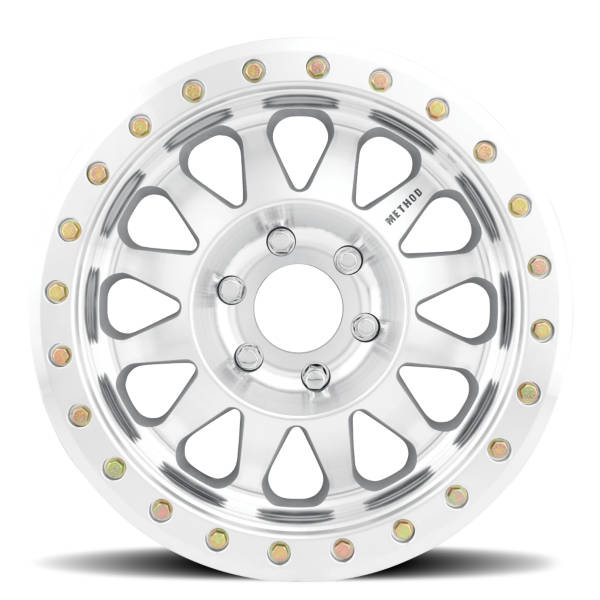

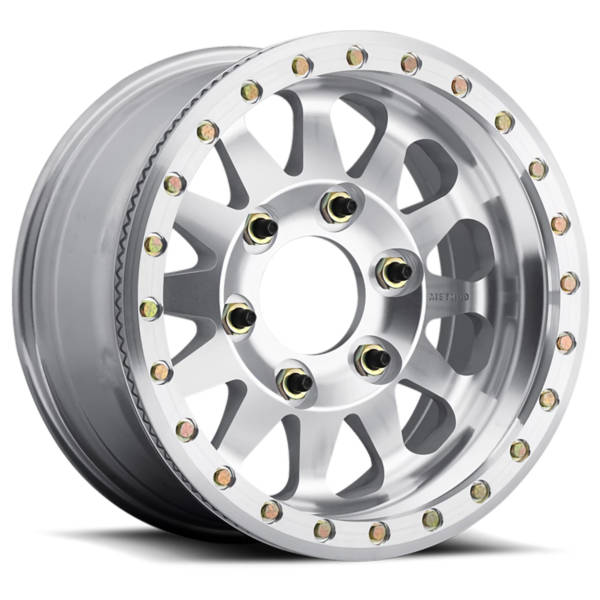

Method Race Wheels MR101 Beadlock
The MR101 Beadlock rim defines Method’s ethos of “Lighter. Stronger. Faster.”
Method Race Wheels MR 101 Beadlock Features
The MR101 Beadlock is the signature off-road wheel from Method Race Wheels. Built for extreme off-road use, racing, and challenging trails, the MR101 combines aggressive aesthetics with serious engineering.
It features a 12-spoke layout with machined pockets, styling details and engraved Method branding on one spoke. The MR101 Beadlock is available in a raw machined finish with zinc bolts.
Plus, the true beadlock construction gives you the freedom and confidence to air down your tires whenever you want added traction for rock crawling and other extreme adventures.
Other features of the Method Race Wheels MR 101 Beadlock include:
Heat-treated, cast aluminum construction for strength and durability.
Grade 8 zinc-plated beadlock hardware kit for reliable grip.
Reinforced inner lip adds support for heavy loads or aired-down tires.
Available in a 17” size with multiple bolt patterns to fit a range of vehicles.
Method Race Wheels MR 101 Beadlock Warranty
Method Race Wheels are covered by a lifetime structural warranty, as well as a 5-year warranty for painted finishes. Warranty coverage applies to the original purchaser.
You’ll want a set of rugged all-terrain tires to go with these rims. Put together a custom wheel and tire package and you’ll save time and money with a single installation appointment and fee.
When the trail is your second home, choose a set of Method Race Wheels MR 101 Beadlock rims.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 17" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 9" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 6-165.1 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -12 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 108 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 41.2 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Machined - Raw |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 6 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 3400 LBS |
| VPN Vendor Product Number | MR10179070312BR |
| GTIN Global Trade Item Number | 191682001925 |
