product info

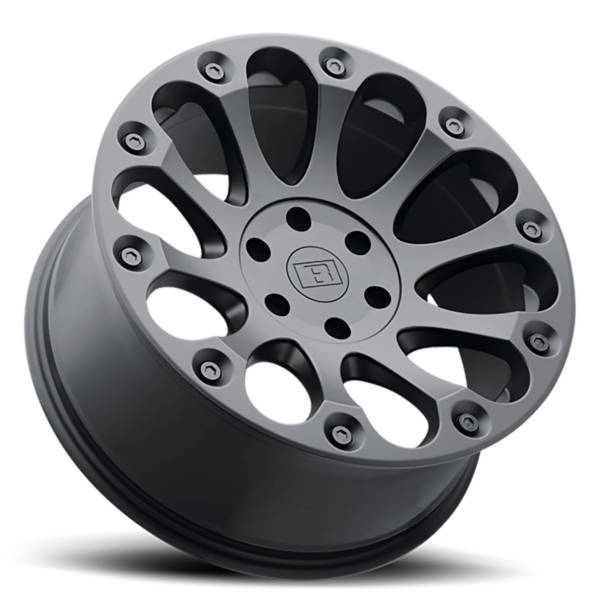

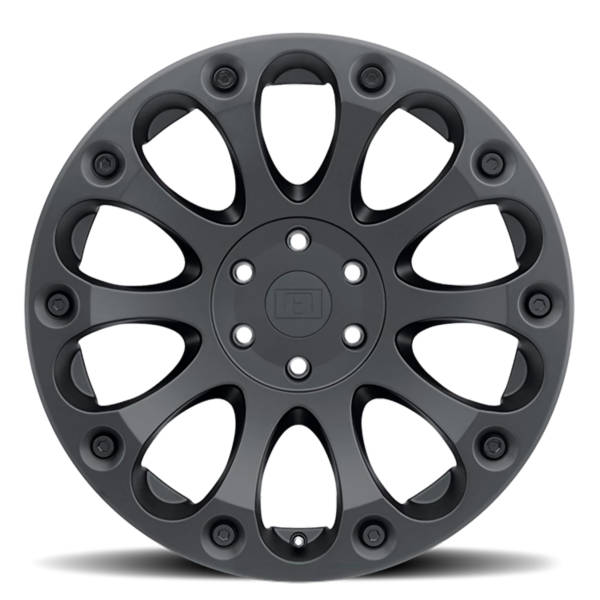

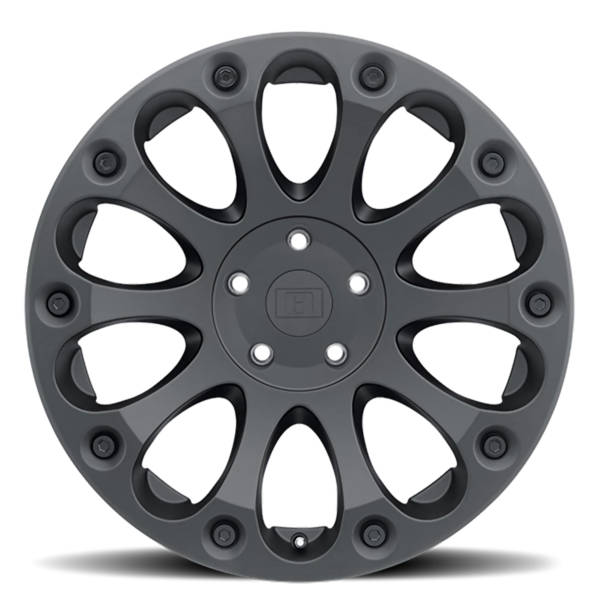

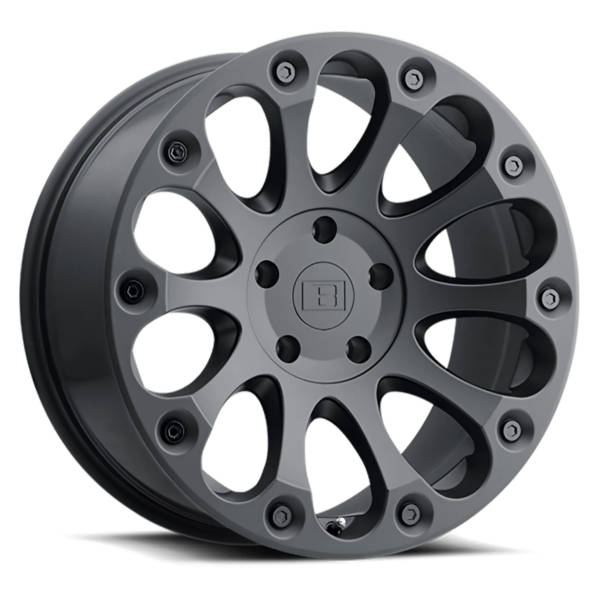

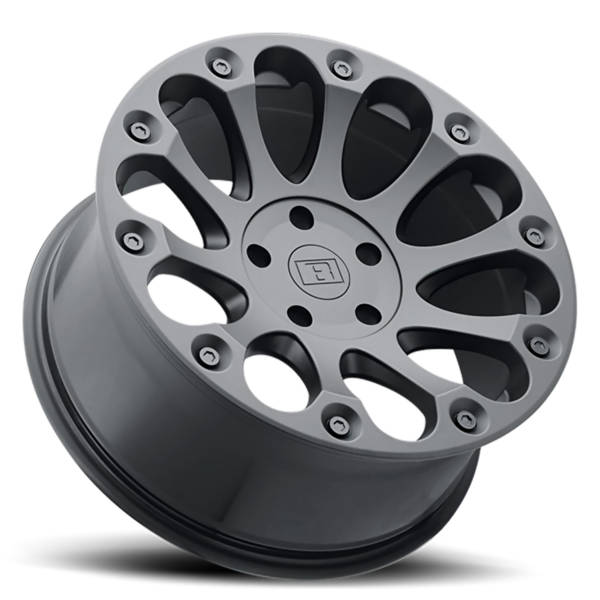

Level 8 Impact
The Level 8 Impact is a modular style wheel with each concave spoke running up to the lip of the wheel with aggressive machined bolts surrounding the lip. The Impact is built in popular 15 thru 20 inch sizes in a Matte Black finish. It comes with a snap-in center cap featuring the Level 8 brand logo. Check out the Level 8 Impact for your stock, lifted or leveled truck or SUV.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 16.0" - 20.0" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 8.5" - 9.0" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-127.0 - 6-132.0 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -24 - 9 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 67.1 - 108.1 |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 - 6 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2500.0 LBS |
