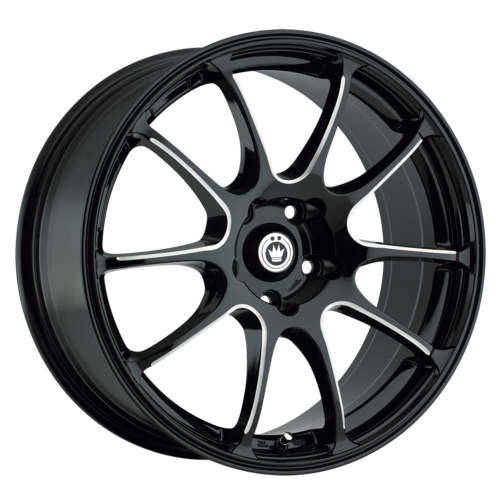

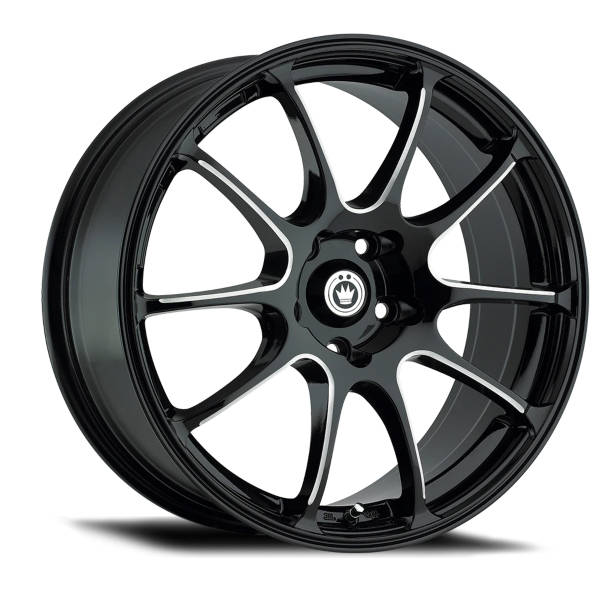

Konig Illusion
The Konig Illusion is a traditional 10 spoke wheel design with a twist. It is offered in with beautiful ball cut machined accents on each spoke and is available in gloss black machined with optional Discount Tire exclusive red or blue tinted clear coat. The Illusion includes a snap-in center cap featuring the Konig wheels logo. The Konig Illusion will add unequaled style in a wide range of sizes and fitments.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 17" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 7" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-114.3 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | 40 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 73.1 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 21 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Gloss Black With Machined Ball Cut |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 1521 LBS |
| VPN Vendor Product Number | IL77514405 |
| GTIN Global Trade Item Number | 043482183335 |
