Ion Alloy 149
Ion Wheels 149
Ion Wheels 149 are the standout rims your heavy-duty rig deserves.
Ion Wheels 149 Features

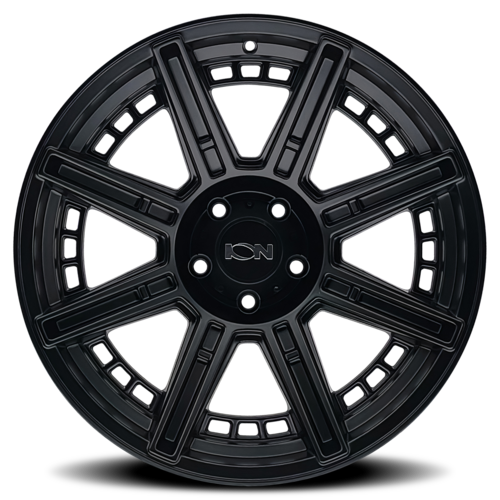

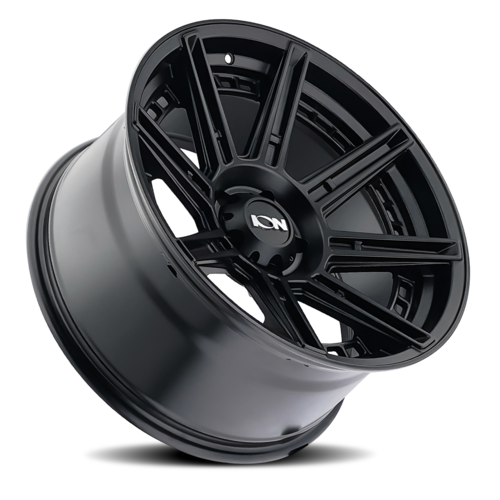

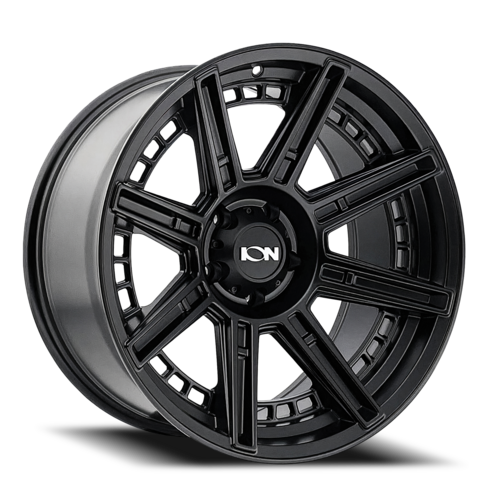

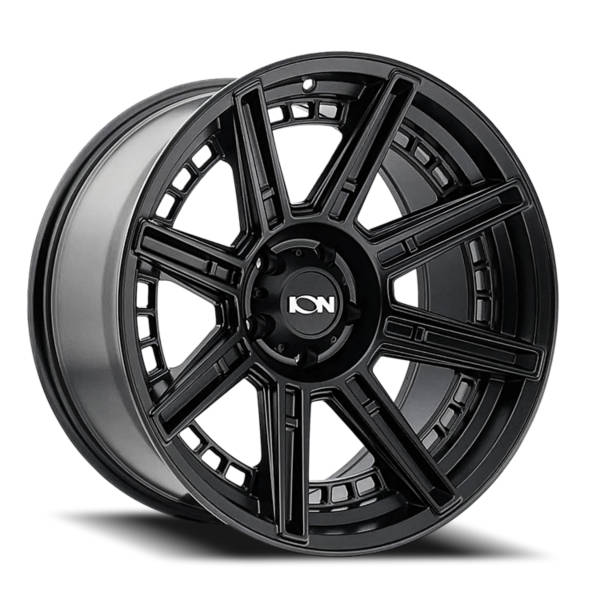

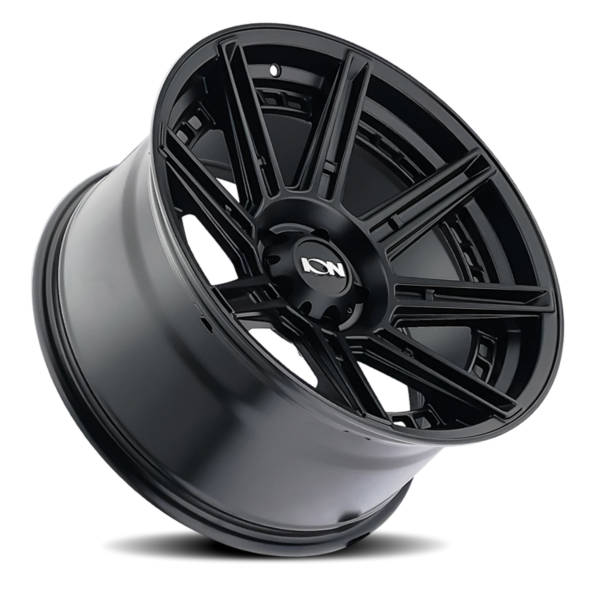

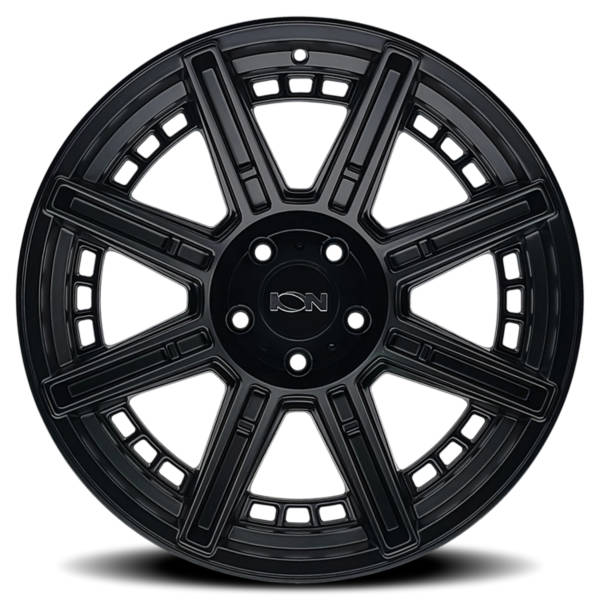

At first glance, you might think the Ion Wheels 149 is simply a classic, 8-spoke aftermarket rim. But look more closely and you’ll see layers of detail that set it apart. Each spoke features a milled face, and behind the spokes you’ll notice a series of symmetrical notched cut-outs.
But the fine details aren’t the only thing that make the 149 unique. It also boasts an impressive load rating of 3800 lbs, so it can handle your most demanding hauling and towing needs, all while highlighting your heavy-duty rig’s aggressive stance.
Finally, whether you’re looking for a subtle or bold finish, you’ll find what you want when choosing from simple matte black or gloss black with high-shine milled accents.
Other features of the Ion Wheels 149 include:
Available in a 20” size with multiple bolt patterns and offsets to fit a range of trucks and SUVs.
3800 lbs load rating to accommodate the toughest hauling and towing tasks.
8-spoke design with milled and cut-out details.
Ion Wheels 149 Warranty
Ion Wheels are covered by a limited lifetime structural warranty and a one-year finish warranty.
You’ll probably want a new set of tires to mount on these rims. Put together a custom tire and wheel package and you’ll save time and money by taking advantage of one low installation price, along with the convenience of a single appointment.
Whether you’re hauling, towing, working or playing, roll through it on a set of Ion Wheels 149 rims.
RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 20.0" |
RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 9.0" - 10.0" |
BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-127.0 - 8-180.0 |
OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -12 - -24 |
HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 78.1 - 125.2 |
NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 - 8 |
LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2500.0 LBS - 3800.0 LBS |
