product info

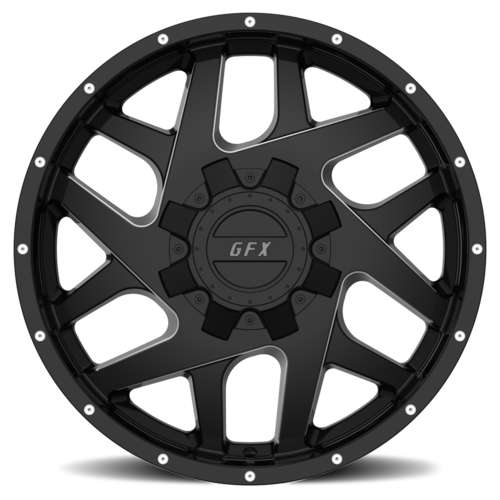

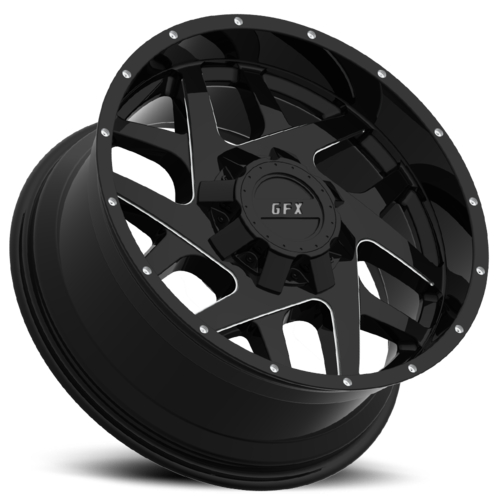

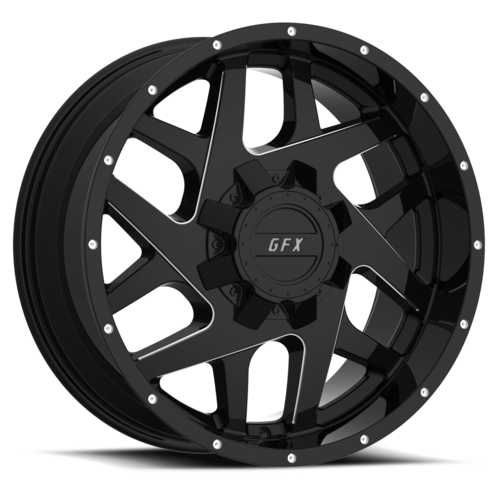

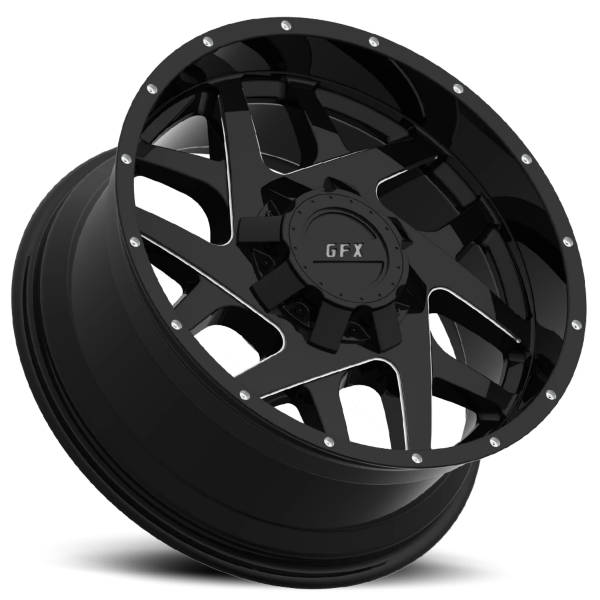

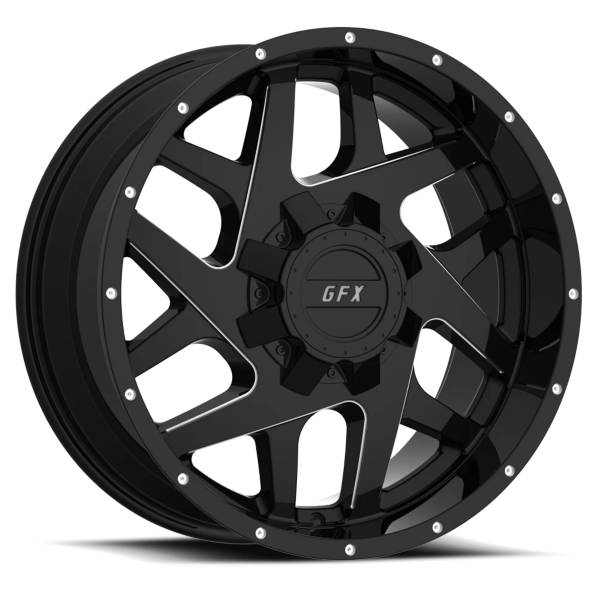

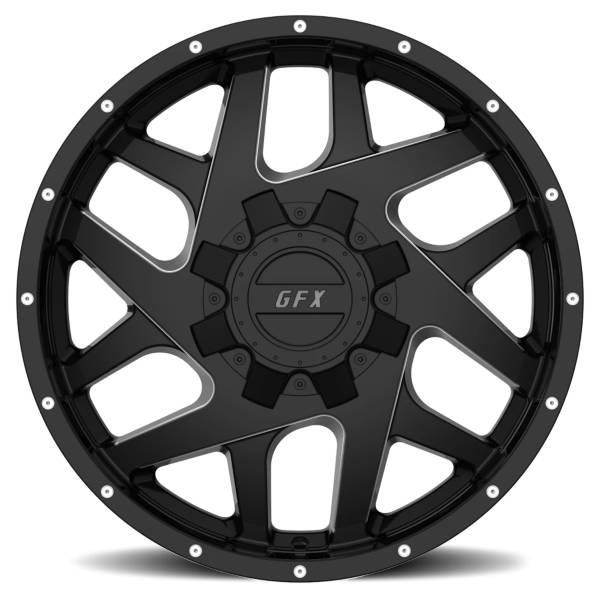

G-FX TR-Mesh2
The G-FX TM2, TRMesh2 from Voxx Wheels is a twisted mesh style wheel with milled details on each spoke. This wheel comes with a bolt-on center cap featuring the G-FX brand logo. It is built in 17, 18 and 20 inch sizes in a Gloss Black Milled finish. All G-FX wheels come with a lifetime structural warranty and 1 year finish warranty.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 17.0" - 20.0" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 9.0" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 6-135.0/6-139.7 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | 12 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 93.2 - 106.2 |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 6 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2250.0 LBS |
