Fuel Wheels Unit UTV D783
Fuel Unit
Don’t you want people to look at your wicked off-road rims and go, “What an absolute unit?” Now you can with the Fuel Unit!
Fuel Unit Features
Engineered for the off-roading community, the Fuel Unit is a true trail warrior. Aggressive, capable and well designed, it offers only the best.

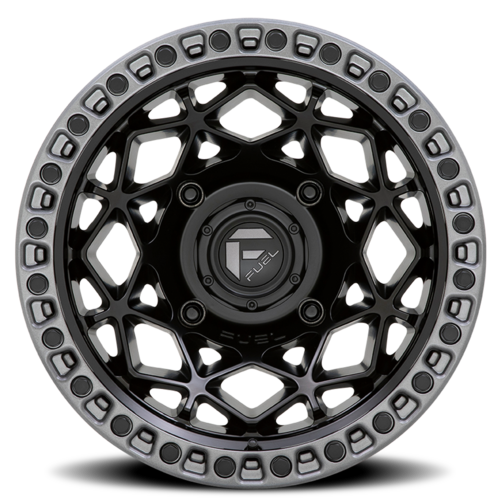

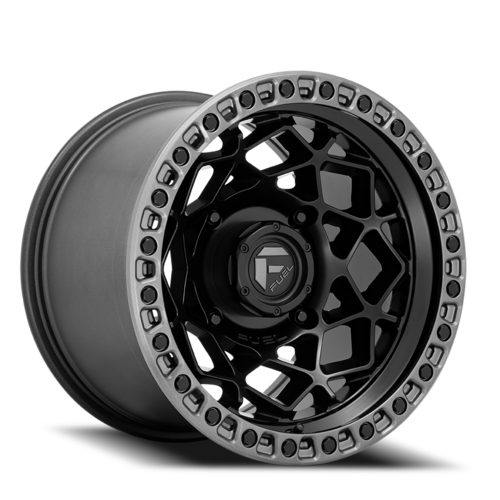

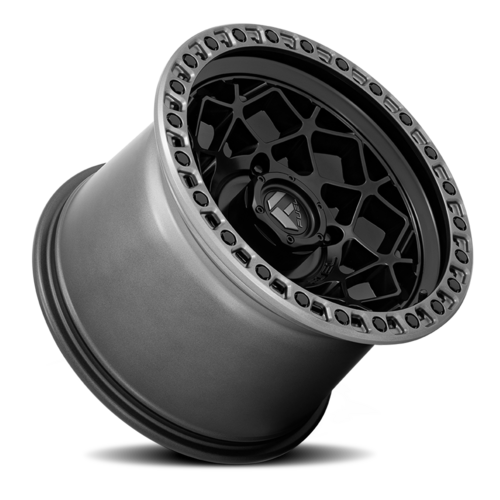

It sports a geometric cut out beadlock ring raised prominently over its matte barrel. It offers a gentle concave design with honeycomb mesh style spokes. The central hub is inset, resting in a dipped circular hub with exposed lugs and a bolt-on center cap featuring the Fuel brand logo.
Other Fuel Unit features include:
-
Available in 15x7 and 15x10 inch sizes with four lug bolt applications, it is suitable for a wide variety of SxS machines.
-
Set up your ride right with either matte black with anthracite ring (D783), matte anthracite with black ring (D784) or matte bronze with black ring (D785) finishes.
-
Made with a one piece aluminum construction, this wheel offers lightweight strength that won’t hold you back or let you down.
Fuel Unit Warranty
Fuel Off-Road Wheels offers a lifetime structural defect warranty against defects in workmanship and materials.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 15.0" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 7.0" - 10.0" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 4-136.0 - 4-156.0 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | 0 - 10 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 110.1 - 132.0 |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 4 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 1000.0 LBS |
