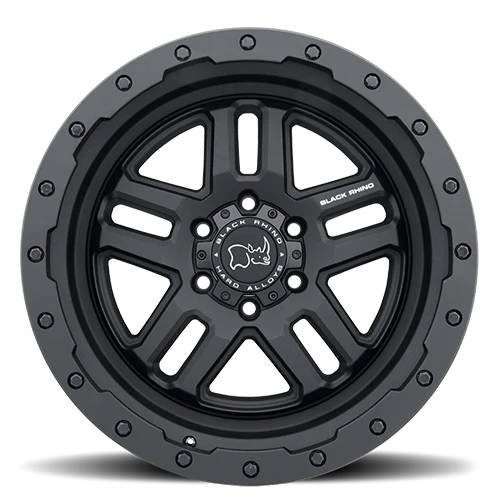

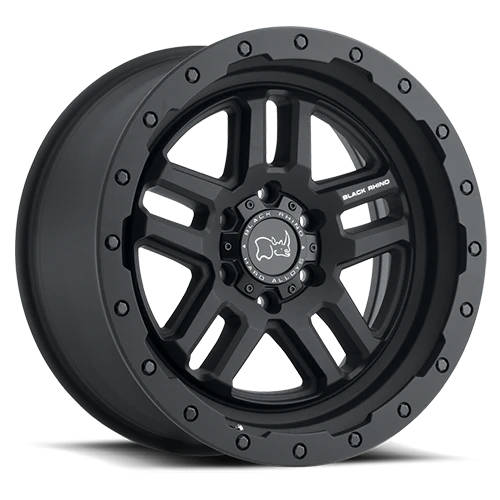

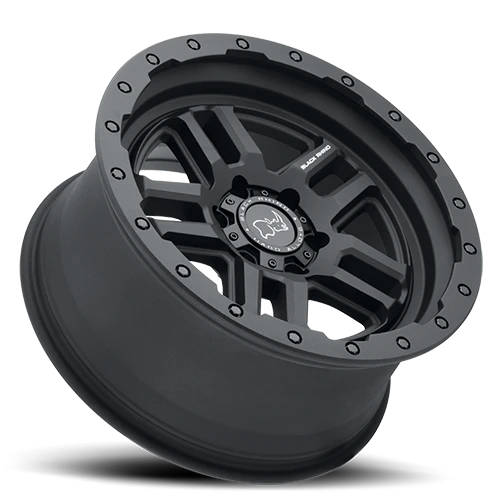

Black Rhino Barstow
The Black Rhino Barstow is a rugged split 5 spoke design with machined details on each spoke and a beadlock style matte black lip ring for added protection in the roughest terrains. The Barstow is built in 17 thru 20 inch truck and SUV sizes in Matte Bronze with a textured matte black lip ring or a Textured Matte Black finish. It comes with a bolt-on center cap featuring the Black Rhino brand logo. The Barstow by Black Rhino will add that rugged toughness you’ve been looking for.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 17.0" - 20.0" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 8.0" - 9.5" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-127.0 - 6-139.7 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -18 - 52 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 10.0 |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 - 6 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2450.0 LBS - 3640.0 LBS |
