Black Rhino Axle
Black Rhino Axle
Get turned in the right direction with the Black Rhino Axle; it’s paramount to your off-road success and fun!
Black Rhino Axle Features
The Axle is Black Rhino’s first wheel designed to be used specifically without a covered center cap. Influenced by their popular Arsenal and Armory military style wheels, the Axle gives you the flexibility to use with an exposed axle hub.
The capless design allows drivers with manual locking hubs, large axle swap kits and trucks with large hubs to equip their rig with the Axle by Black Rhino.

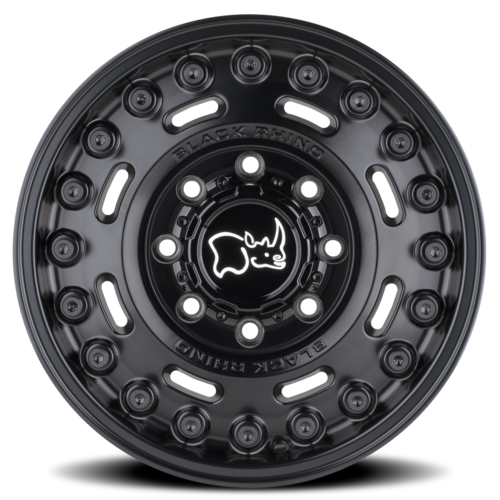

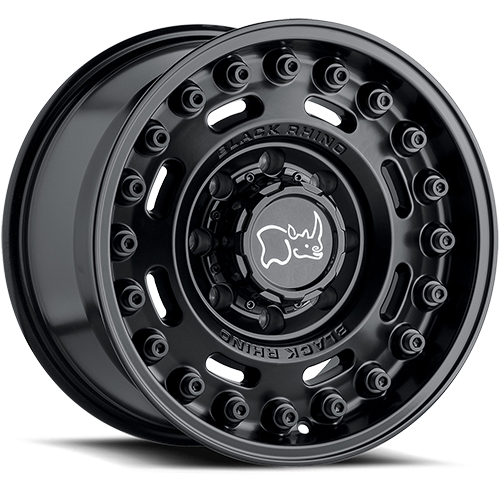

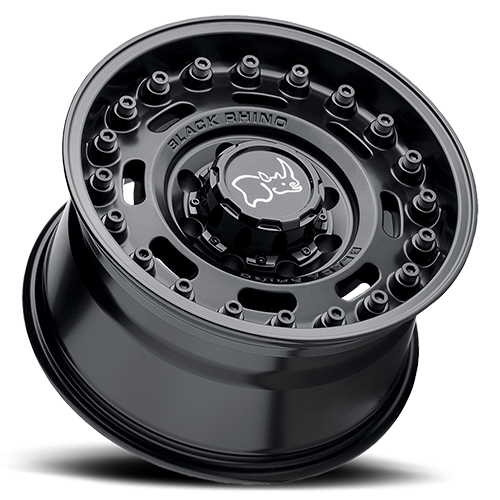

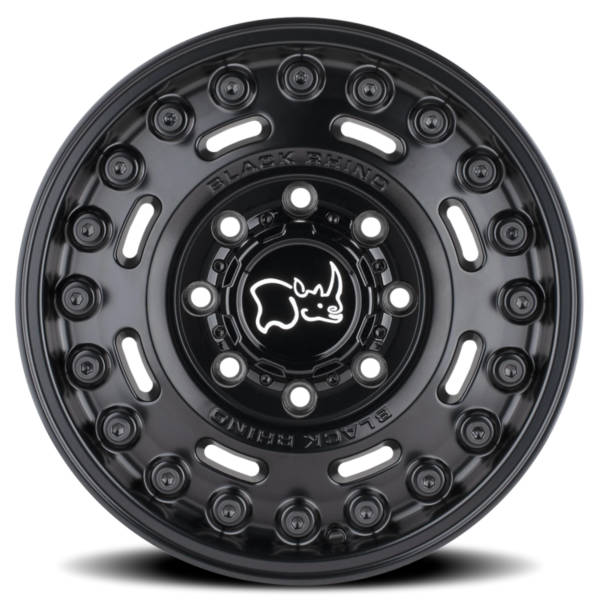

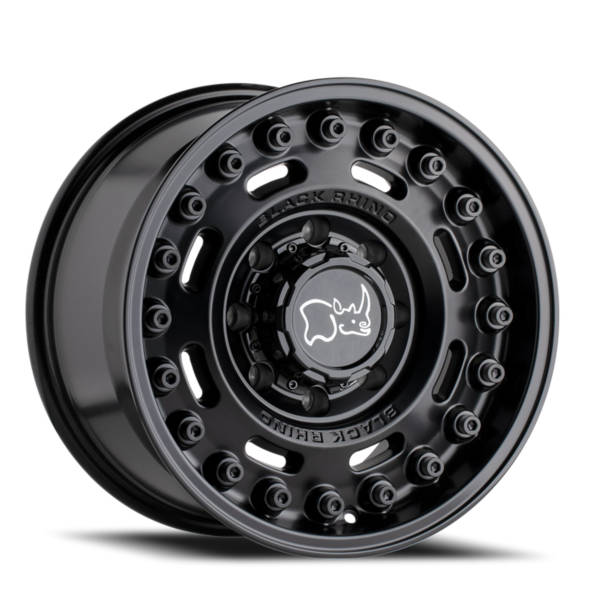

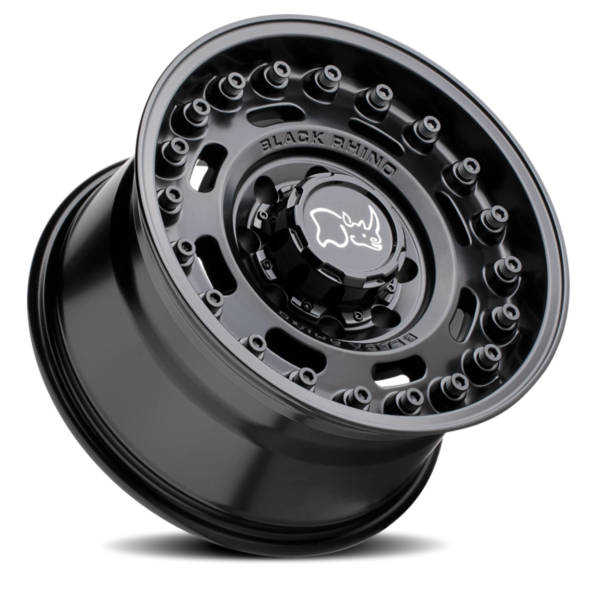

The Axle features a full face modular style with oblong window cutouts, faux bolts studding the edge of the face and a flat planed lip. The central hub is inset like a dish with dual embossed Black Rhino emblems circling the lip. The lugs are exposed and flank an optional bolt-on center cap boasting the iconic Black Rhino brand logo.
Other features of the Axle include:
Battleship grey, gloss white, gloss white with cap, matte black and matte black with cap finishes offer you the chance to customize your rig’s look.
Available in 17 to 20’’ diameters and five, six and eight-lug bolt patterns, it fits a wide range of off-road-ready vehicles, including the RAM 1500, Land Rover Defender,Hummer H3 and many more.
Capless design allows drivers with manual locking hubs, large axle swap kits and trucks with large hubs to equip their rig with the Axle by Black Rhino.
All Axle wheels come with a center cap to be used or discarded if desired.
Black Rhino Axle Warranty
Black Rhino offers a one year finish warranty on chrome and painted finish wheels plus a lifetime structural warranty against defects in workmanship and materials, applicable only to the original purchaser.
Our wheel and tire packages offer convenient one-stop shopping when you need to replace or upgrade your rims and rubber at the same time. Plus, enjoy great time and cost savings with only one required installation appointment and fee!
Show a little axle with the Black Rhino Axle off-road wheel!
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 17.0" - 20.0" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 9.5" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-127.0 - 8-170.0 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -18 - 6 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 71.5 - 125.1 |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 - 8 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2450.0 LBS - 3640.0 LBS |
