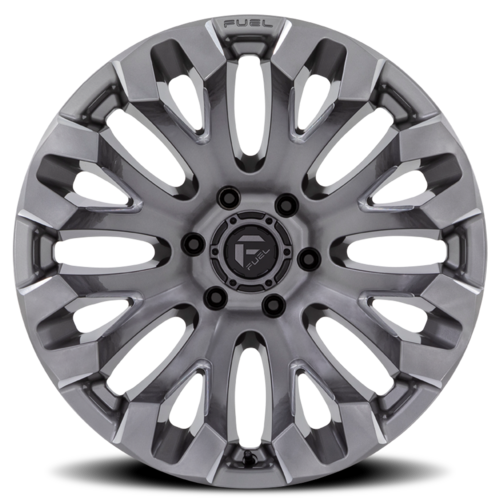

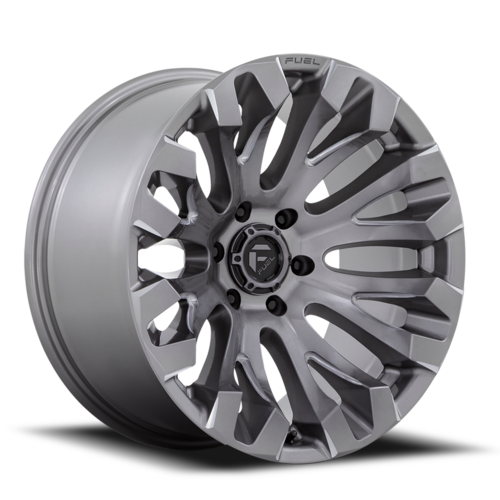

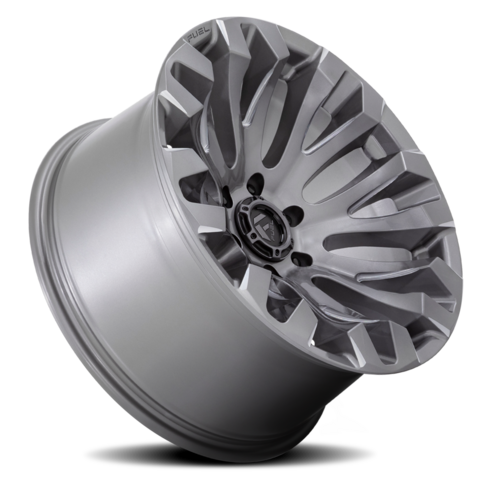

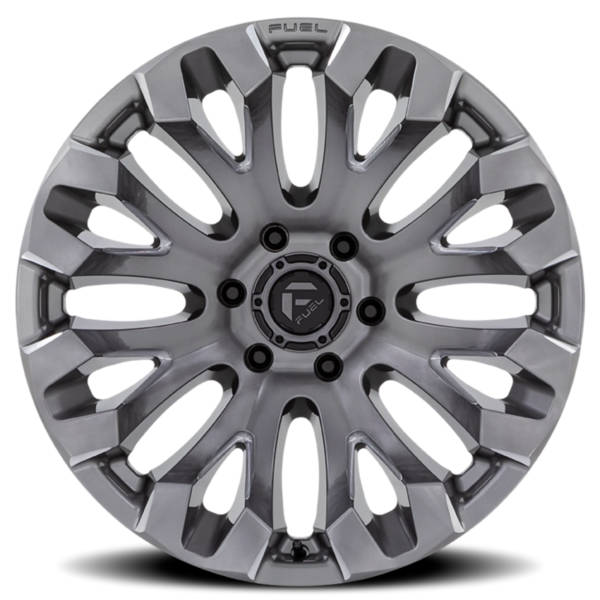

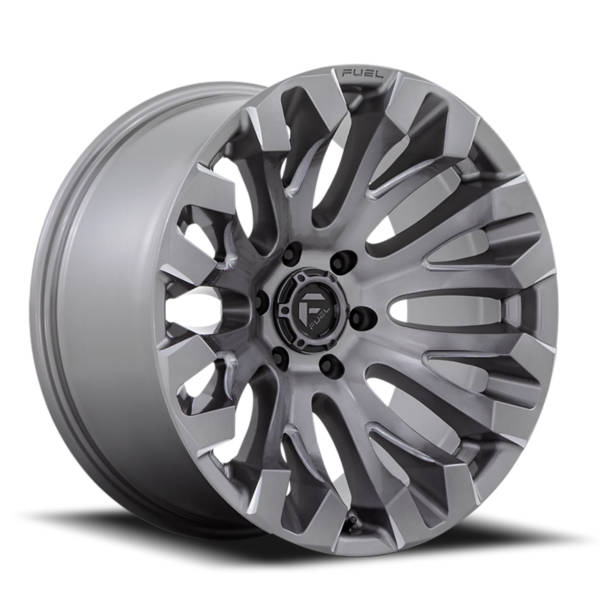

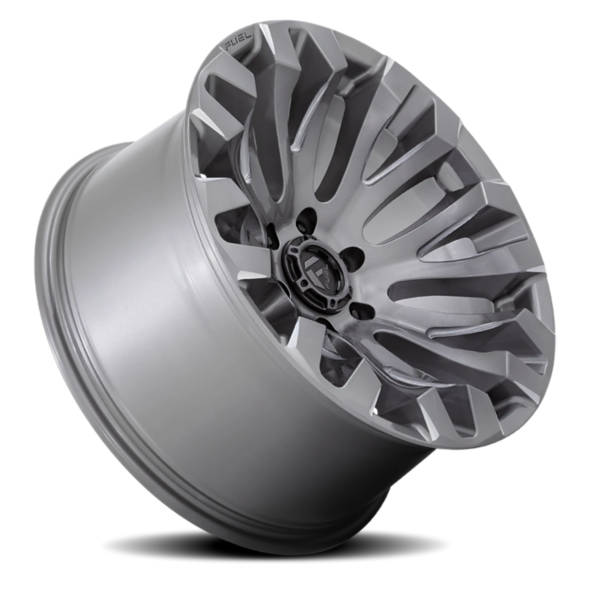

Fuel Wheels Quake D830
Fuel Quake
Shake the earth like the real thing with the Fuel Quake!
Fuel Quake Features
The Quake is an off-road ready rim from Fuel’s Off-Road lineup of one-piece cast construction options. Its robust design and construction make it a force to be reckoned with, on or off pavement.
It features a multi-split spoke design with concave style. The chunky, blocked ends of each spoke meet the thin lip, which is crowned with a debossed FUEL brand logo. Each forked spoke is also edged for additional dimension and aesthetic. The central hub is inset with exposed lugs and a bolt-on center cap bearing the Fuel brand logo.
Other features of the Fuel Quake include:
A wide range of sizing (18 and 20’’ diameters) and five, six and eight lug applications to fit your three-quarter ton 4x4 workhorse pickup truck.
An appealing assortment of finishes including gloss black milled (D828), gloss black milled red (D829), platinum (D830), and blackout (D839) to suit any driver’s taste in paint.
A reliably sturdy but lightweight one-piece cast construction for great strength that doesn’t weigh you down..
Fuel Quake Warranty
Fuel Off-Road Wheels offers a lifetime structural defect warranty against defects in workmanship and materials.
Others will tremble at the impressive sight of the Fuel Quake off-road rim!
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 18.0" - 20.0" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 9.0" - 10.0" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-127.0 - 8-180.0 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -18 - 1 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 71.5 - 125.1 |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 - 8 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2500.0 LBS - 3700.0 LBS |
