product info
Fuel Wheels Block Beadlock D124
Fuel Block Beadlock
Be the best on the block, on the trail or anywhere with the Fuel Block Beadlock. The off-roading style and performance champion, the Block Beadlock is a force to be reckoned with.
Fuel Block Beadlock Features
Look to the past for inspiration and to today’s modern construction techniques for performance. The Block Beadlock does just this with its classic off-roading style and design paired with impeccable construction.

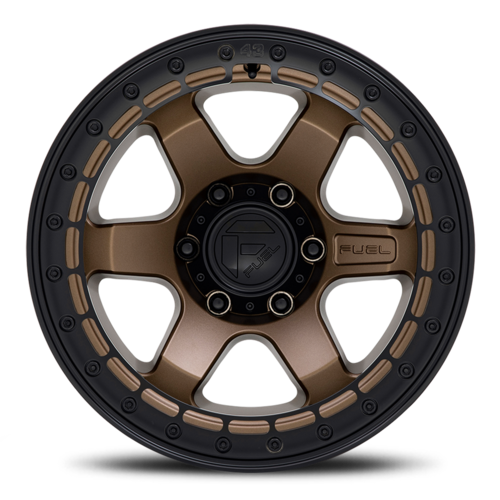

Its studded beadlock ring is lipped with geometric cut out windows along its interior rim, providing a peek into the barrel behind and lightening the overall weight load. A traditional six star spoke design emanates from a slightly concave hub face. The central hub is inset with exposed lugs, alternating rivets and Fuel brand logo emblazoned on its bolt-on center cap.
Other Fuel Block Beadlock features include:
-
A one piece aluminum alloy construction to give you lightweight but unyielding strength.
-
Most 4x4 capable SUV and trucks should be able to equip this wheel with its available 17’’ sizes and five and six lug bolt application.
-
Enjoy your finished ride’s overall look with matte black with black ring (D122), candy red with red ring (D123) or matte bronze with black ring (D124) finishes.
Fuel Block Beadlock Warranty
Fuel Off-Road Wheels offers a lifetime structural defect warranty against defects in workmanship and materials.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 17" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 9" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 6-135.0 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -15 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 87.1 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 41.3 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Matte Bronze With Matte Black Ring |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 6 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2500 LBS |
| VPN Vendor Product Number | D12417908945 |
| GTIN Global Trade Item Number | 194933109234 |
