product info
Vision 551

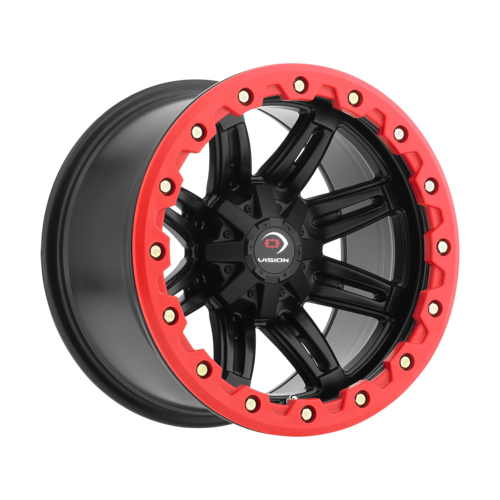

The Vision 551 is a split 8 spoke design. It offers distinctive off-road styling with a bolt on scratch guard with zinc plated bolt hardware, Grade 8, for superior off-road protection. The wheel comes in a Matte Black finish with a red scratch guard ring and is offered in popular 12 and 14 inch ATV UTV fitments. It features a bolt on center cap with the Vision Wheels logo. The Vision 551 is the way to go for any off-road adventure.
The Vision 551 wheel comes with a bolt-on Red scratch guard ring, however the ring is offered at an additional cost in a few other popular colors: White, Black, Blue, Green or Yellow
The scratch guards are sold in sets of (2) in 12 and 14 inch sizes. These rings are not currently available to purchase online, please speak with a sales associate by phone to order these optional color rings.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 14" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 7" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 4-115.0 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | 2 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 10 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 17.5 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Matte Black W/red Lip Armor |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 4 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 900 LBS |
| VPN Vendor Product Number | 551-147115MBR4 |
| GTIN Global Trade Item Number | 886821164530 |
