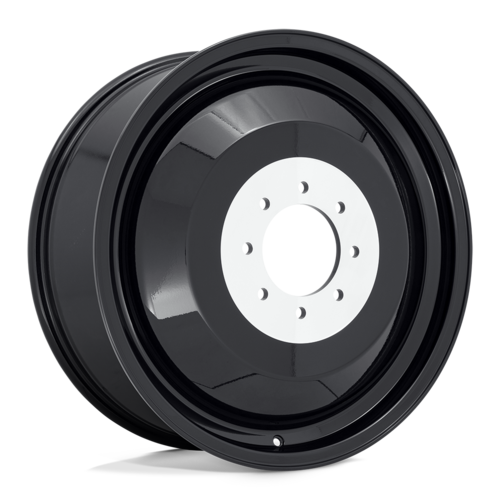

Fuel Wheels Dually Inner D501
The Fuel Wheels Dually Inner (D501) is a plain face, cast aluminum construction. It is designed to be used as an inner rear wheel on dually truck applications to provide a solid backing for custom rear outer wheels and built in a 24" size in a Gloss Black finish. The Dually Inner is the perfect finishing touch to your dually.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 24" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 8.25" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 10-285.8 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | 118 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 170.3 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 52 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Gloss Black |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 10 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2500 LBS |
| VPN Vendor Product Number | D5012482A9 |
| GTIN Global Trade Item Number | 885463834696 |
