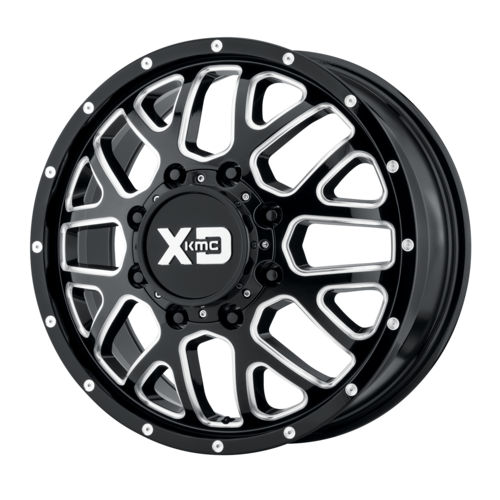

XD Series XD843 Grenade Dually Front
XD843 Grenade Dually (Front) is a rugged mesh style design with milled accents surrounding each spoke and a rivet detail on the lip of the wheel. The XD843 Grenade Dually is built in popular 17 or 20 inch standard or lifted dually sizes in a Gloss Black Milled or Chrome finish. It comes with a bolt-on center cap featuring the XD brand logo. Note: these are the front wheels for your dually, only 2 of these wheels are needed. Take cover and outfit your dually with the XD843 Grenade Dually, by KMC.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 20" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 8.25" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 8-210.0 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | 127 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 10 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 43.26 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Gloss Black Milled - Front |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 8 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 3200 LBS |
| VPN Vendor Product Number | XD843208893127 |
| GTIN Global Trade Item Number | 885463726489 |
