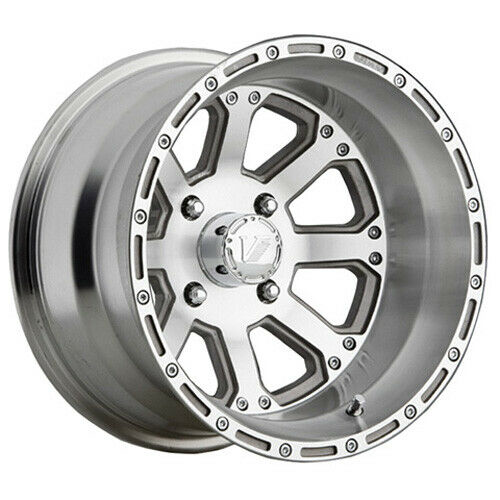

Vision 159 ATV
The Vision 159 ATV wheel is no longer available. Please call for assistance.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 14" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 8" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 4-136.0 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -10 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 10 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 16 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Machined Clear Coat |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 4 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 1124 LBS |
| VPN Vendor Product Number | 159-148137M4 |
| GTIN Global Trade Item Number | 886821001569 |
