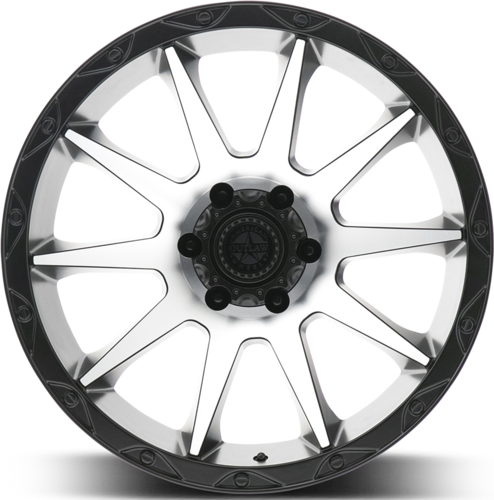

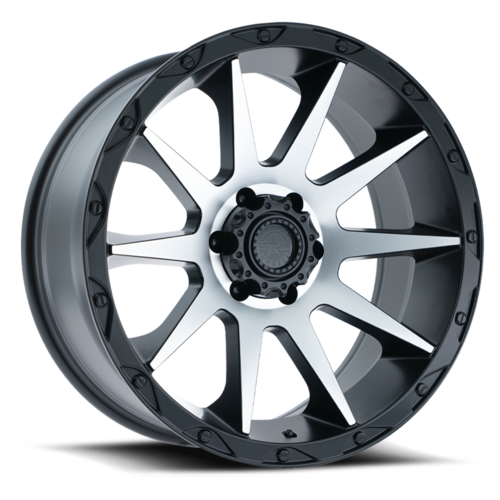

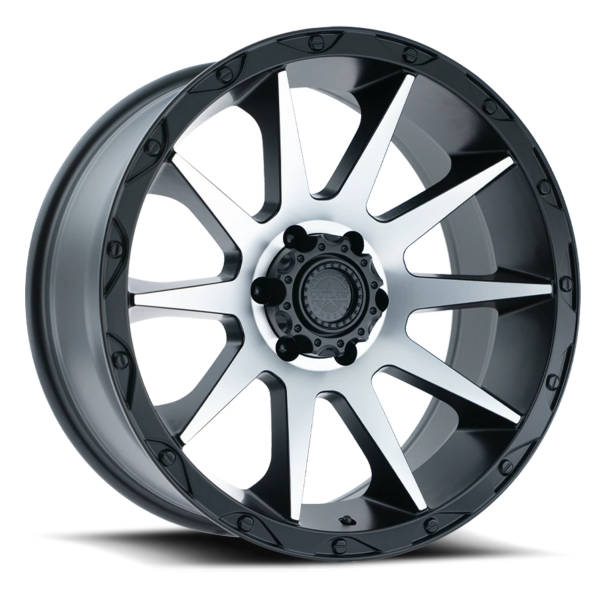

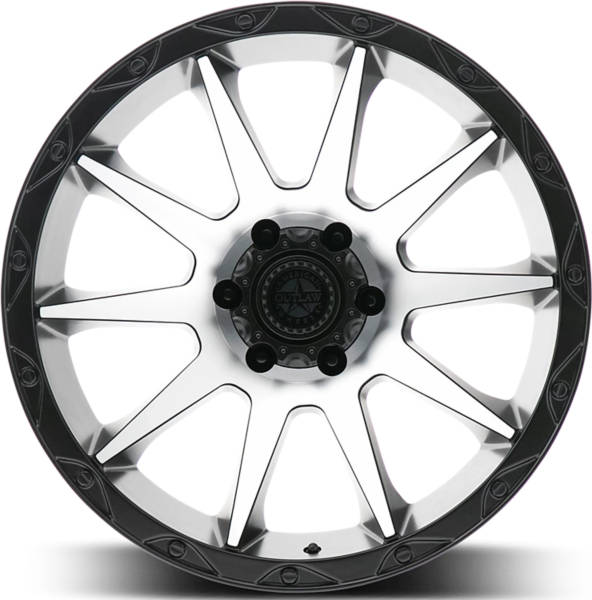

American Outlaw Cord
American Outlaw Wheels presents the Cord, a sharp looking ten spoke wheel design with bolt on center cap that promises spectators will look twice. The Cord offers an eye catching two tone look with a satin black machine face or machine face black tint contrasted with sharp, metallic spokes. The wheel rim is studded with rivets set in a dome inset pattern. The Cord comes in ever popular 17 inch and 20 inch wheel sizes with either a five or six lug option. It’s an excellent option for SUV and trucks looking for an arresting aesthetic paired with home grown performance and design.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 17.0" - 20.0" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 8.5" - 9.0" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-127.0 - 6-139.7 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -10 - 0 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 71.6 - 108.1 |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 - 6 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2500.0 LBS |
