Vision Split

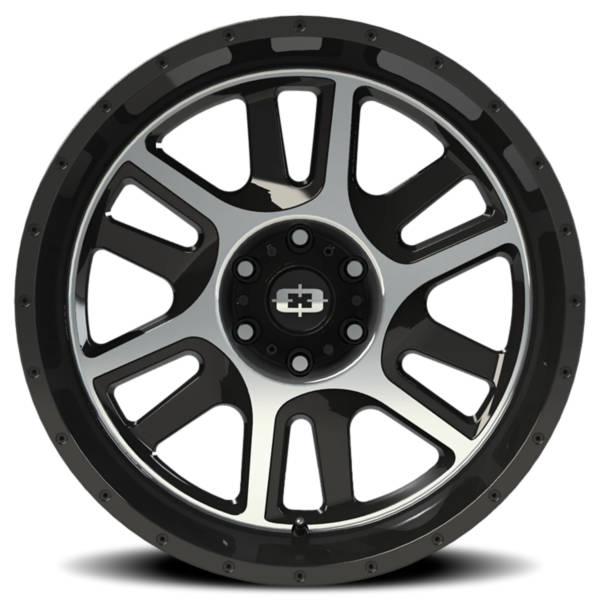

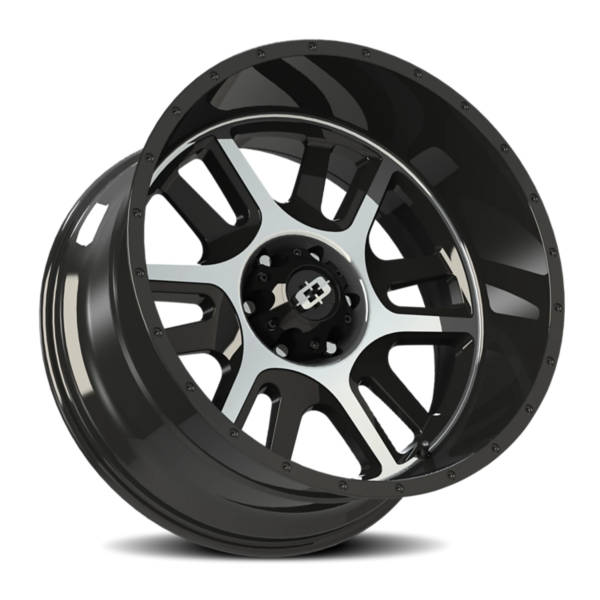

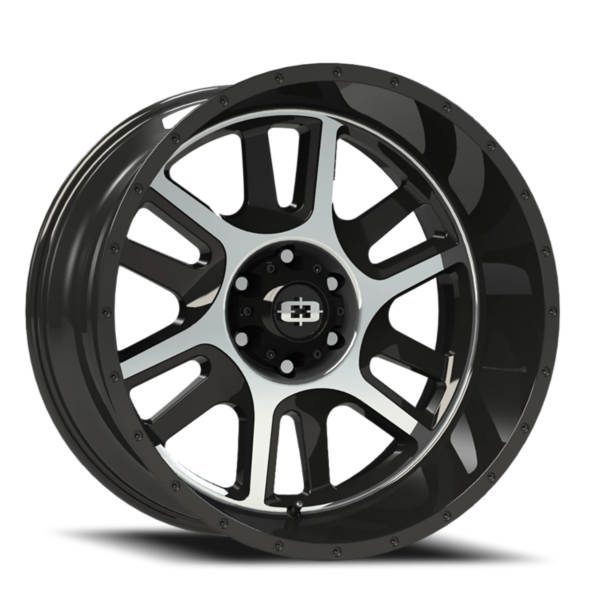

The Vision Off-Road Split (419) is a twisted spoke style wheel design with multiple machined details. This wheel features machined bolts on the lip of the wheel. It includes a bolt-on center cap with the Vision brand logo. It is built in popular 17 inch 18 inch 20 inch and 22 inch sizes in a Satin Black or Gloss Black Machined Face or Chrome finish. The Vision Off-Road Split defies the standard and brings so much more.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 17.0" - 22.0" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 9.0" - 12.0" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-139.7 - 8-165.1 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -12 - 12 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 10.0 |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 - 8 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2500.0 LBS - 3650.0 LBS |
