$273.00 /EA
Deals
5% Military Discount for active duty, veterans, and reserves. (Cannot be combined with America's Tire credit card 5% savings offer)
learn more about this discountWe can usually get these wheels even sooner via transfer from a different store or nearby warehouse. Need it now? Call store -650-988-9611
product info

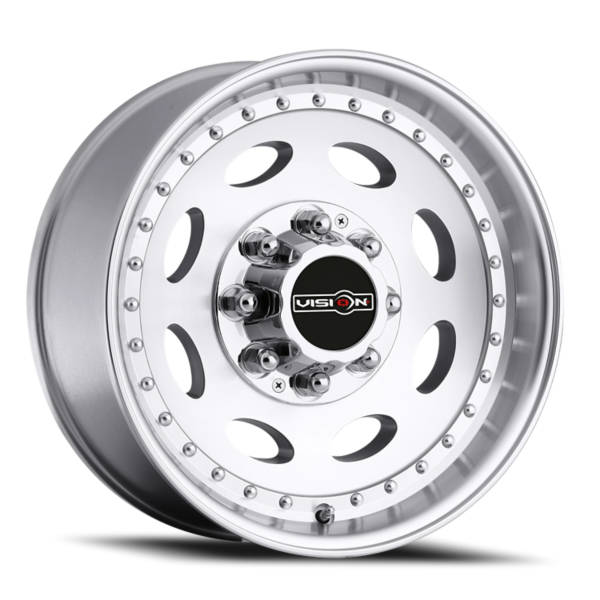

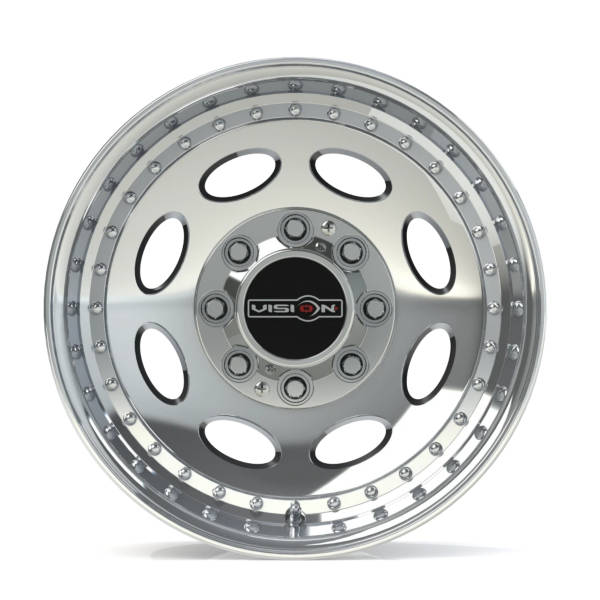

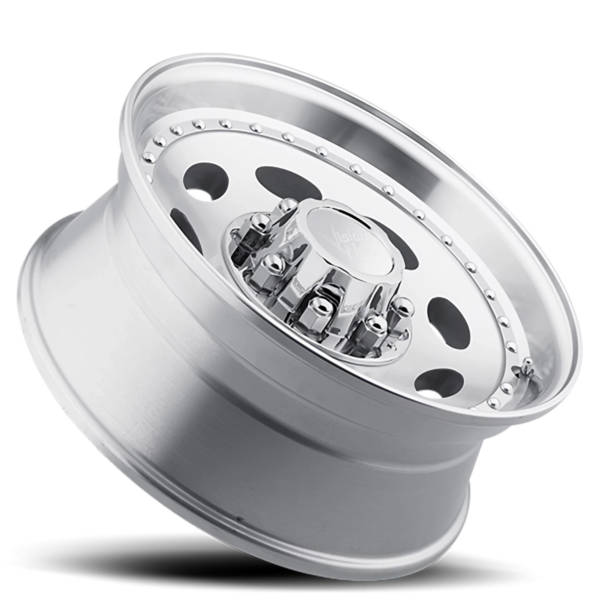

Vision D01
Vision 81A Heavy Hauler is a modular design wheel built for heavy duty trucks and trailers.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 19.5" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 7.5" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 8-165.1 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | 0 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 124.5 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 44 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Machined Clear Coat |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 8 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 4500 LBS |
| VPN Vendor Product Number | 81A-9781M0 |
| GTIN Global Trade Item Number | 886821075065 |
