Ultra Modular Dually
Ultra 002 Modular Dually
When you need a truck wheel that can reach or even exceed the expectations of you and your truck, you turn to Ultra Wheels. Specifically, the Ultra 002 Modular Dually for your dually truck.
Don’t get bogged down shopping for insufficient dually wheels that won’t meet your truck’s needs; the Modular Dually offers capability, durability and style in one convenient package.

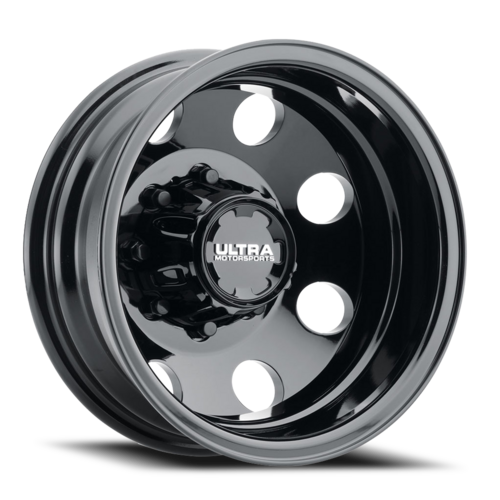

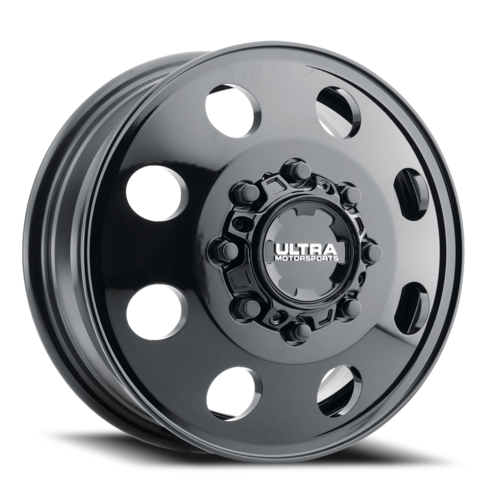

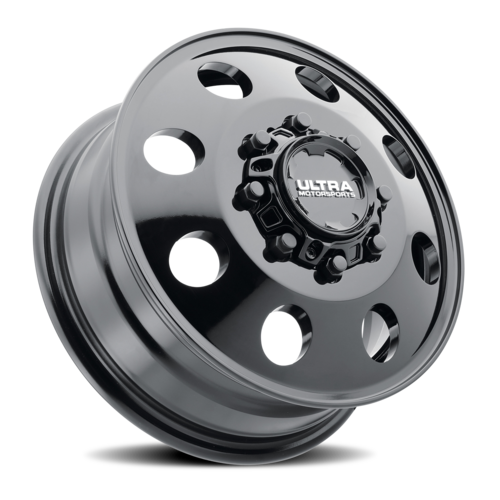

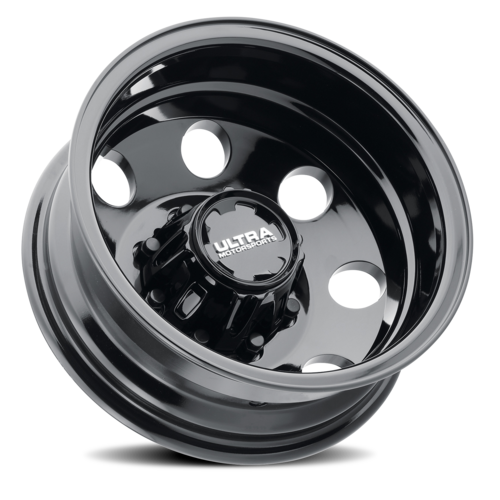

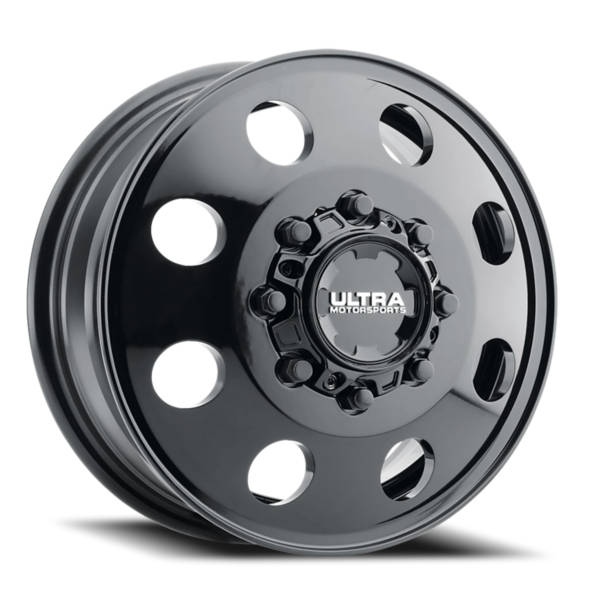

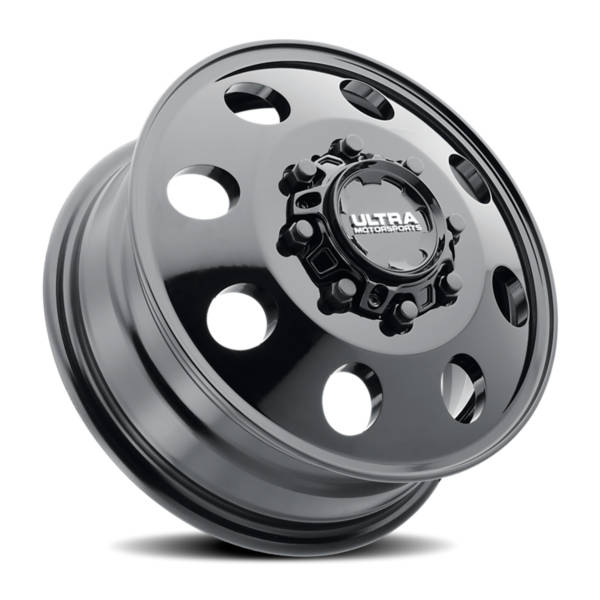

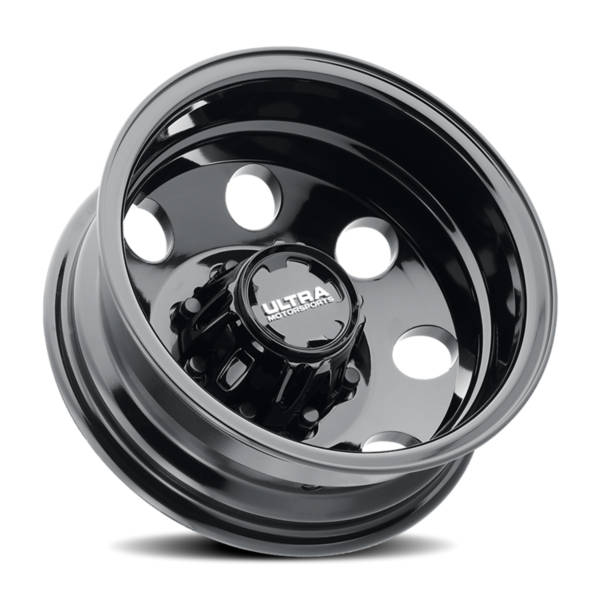

Your front Modular Dually rim features your typical convex design with eight circular window cutouts circling a flat planed center hub. A bolt-on center cap featuring the Ultra brand logo accompanies your exposed lugs. Your rear dually rims feature a deep dish concave style wheel with matching circular window cutouts and flat planed central hub and center cap.
Other features include:
-
Gloss black or polished finishes to spruce up any luxury or work truck equally.
-
One piece cast aluminum A356 alloy construction to offer lightweight strength that you just can’t beat.
-
Eight lug bolt applications to suit most dually compatible trucks.
-
Load ranges between 2500-3000lbs to get almost any job done right.
-
Ultra Wheel Company includes a Limited Lifetime Structural Warranty against material or manufacturing defects to the original purchaser.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 16.0" - 17.0" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 6.0" - 6.5" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 8-165.1 - 8-200.0 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -125 - 129 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 121.7 - 142.3 |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 8 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2500.0 LBS - 3500.0 LBS |
