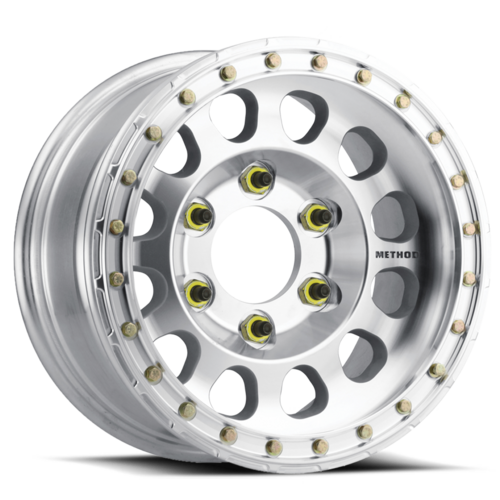

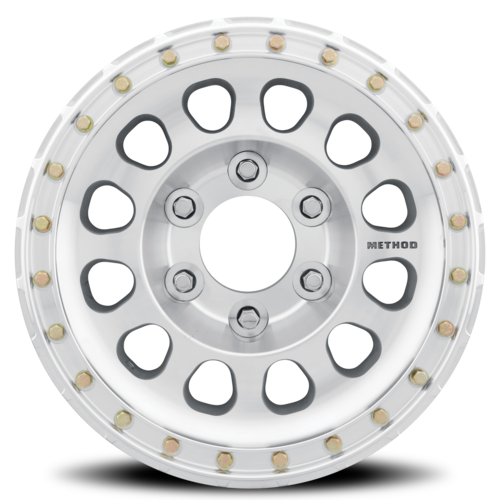

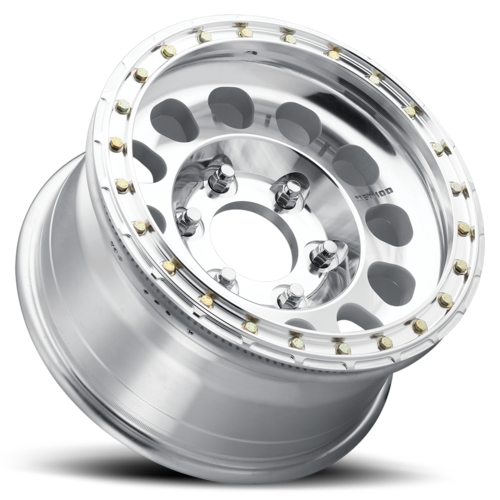

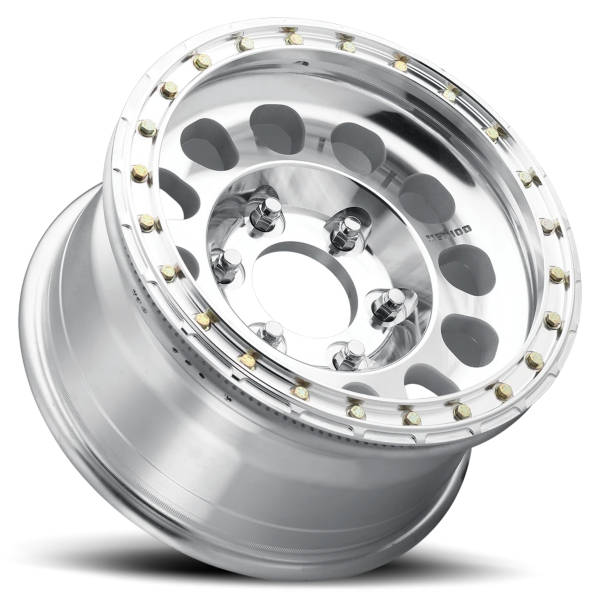

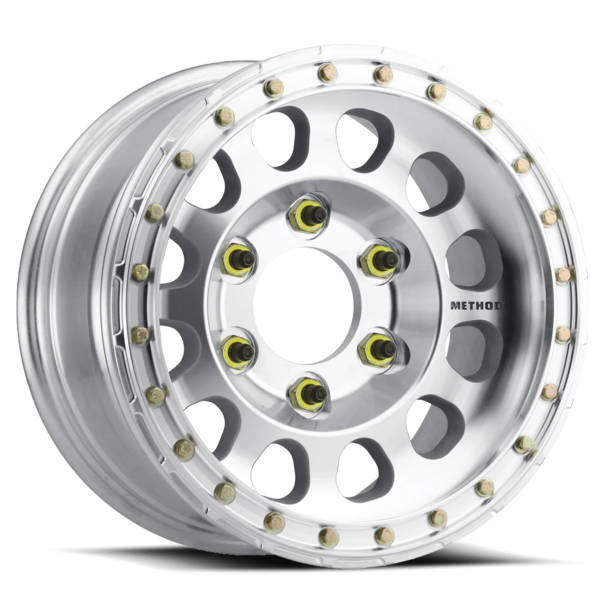

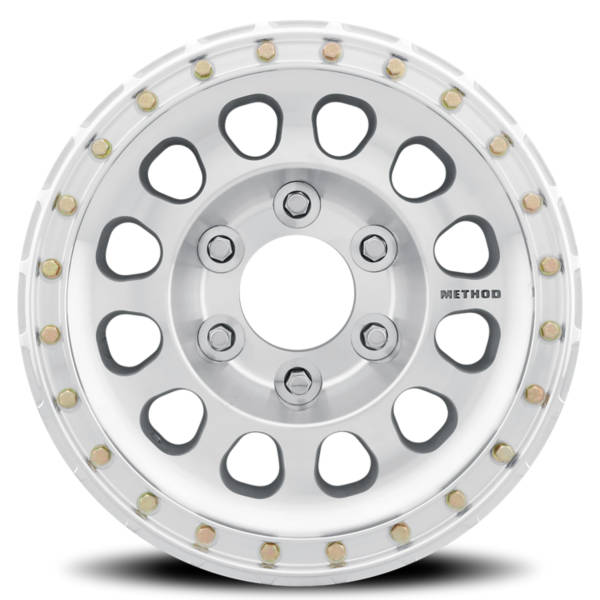

Method Race Wheels MR103 HD Beadlock
With load ratings up to 4,000 lbs, the Method MR103 HD Beadlock aftermarket rim is the choice for heavy-duty off-road vehicles.
Method MR103 HD Beadlock Features
The MR103 HD Beadlock is a tough and tested off-road rim from Method Race Wheels. Built for high-performance on rigs like 6100 trucks, the MR103 HD Beadlock combines aggressive aesthetics with serious engineering.
It features a clean, 12-spoke layout with engraved Method branding on one spoke. It’s designed with room for large brake calipers, and includes dual valve stems for inner liner compatibility.
Plus, the true beadlock construction gives you the freedom and confidence to air down your tires whenever you want added traction for rock crawling and other extreme adventures.
Other features of the Method MR103 HD Beadlock include:
Heat-treated, cast aluminum construction for strength and durability.
Grade 8 zinc-plated beadlock hardware kit for reliable grip.
Reinforced inner lip guards against deformation from heavy loads or aired-down tires.
Dual valve stems to accommodate inner liners.
Load ratings up to 4,000 lbs to handle the most demanding vehicles and conditions.
Raw machined finish with zinc bolts adds an aggressive look.
Available in a 17x9 configuration to fit heavy-duty builds.
Method MR103 HD Beadlock Warranty
Method Race Wheels are covered by a lifetime structural warranty, as well as a 5-year warranty for painted finishes. Warranty coverage applies to the original purchaser.
You’ll want a set of the toughest all-terrain tires to go with these rims. Put together a custom wheel and tire package and you’ll save time and money with a single installation appointment and fee.
Give your rig the winning edge with a set of Method MR103 HD Beadlock rims.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 17" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 9" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 6-165.1 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -12 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 108 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 42.1 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Machined - Raw |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 6 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 4000 LBS |
| VPN Vendor Product Number | MR10379070312HBVR |
| GTIN Global Trade Item Number | 191682015861 |
