Ion Alloy 147
Ion Alloys 147
Bring on the drama with the Ion Alloys 147.
Ion Alloys 147 Features

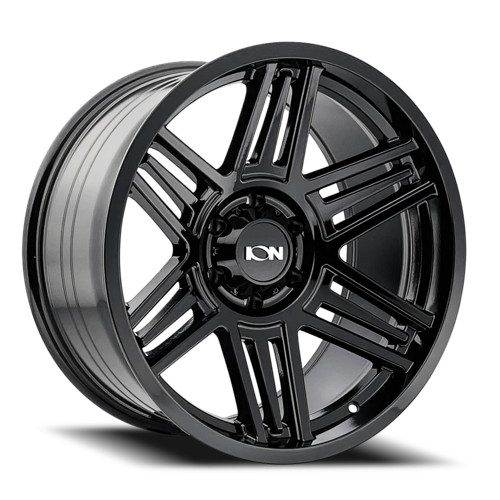

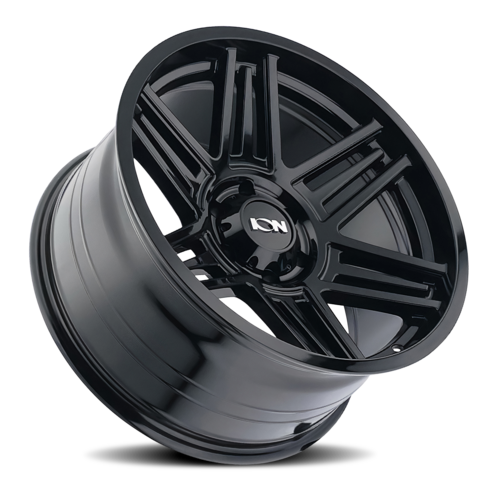

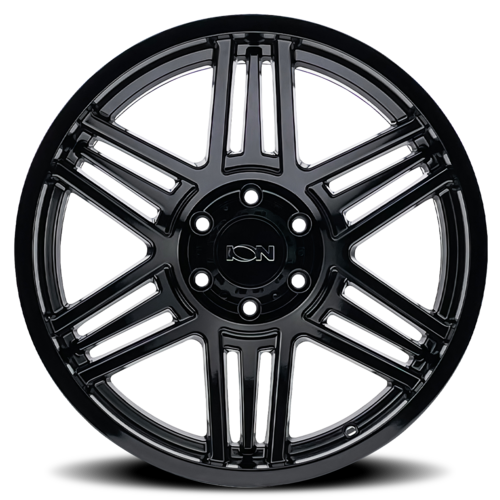

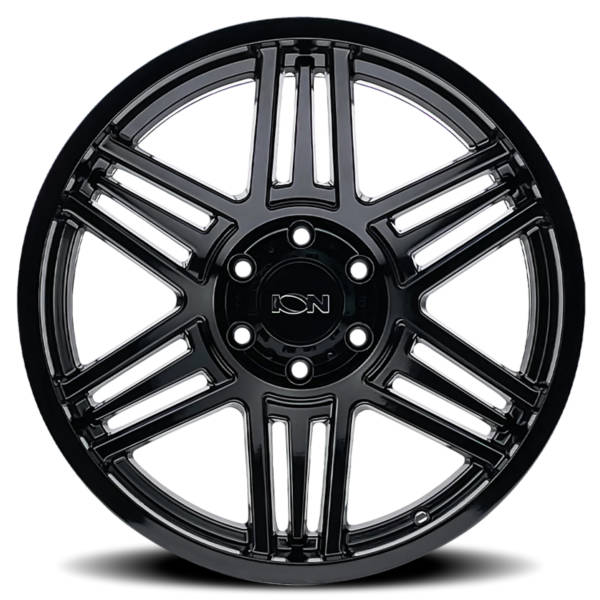

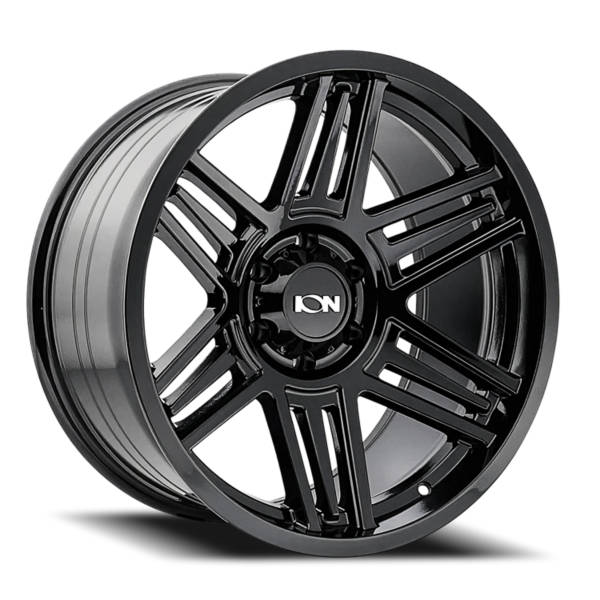

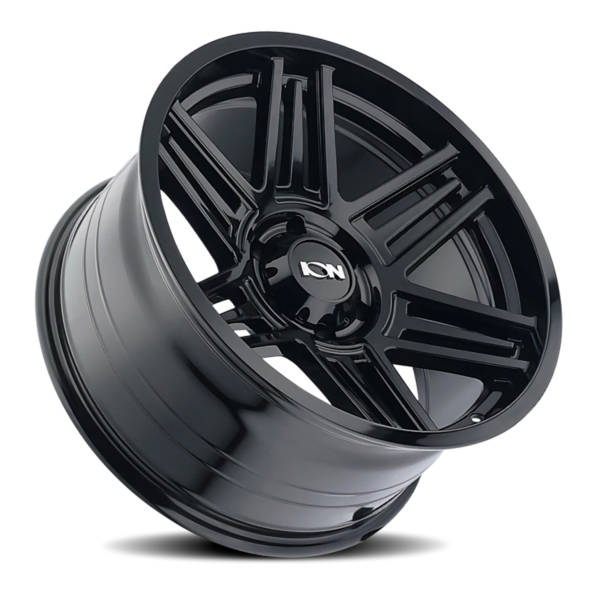

This one-piece, cast aluminum wheel features a concave face with a unique triple spoke design. The center spoke in each group is slightly recessed to create added depth and dimension, while the hub features a raised center cap accented with the unmistakable Ion logo.
Two distinctive finishes let you choose the look that best complements your rig. Whether you go for solid gloss black or dramatic gloss black with meticulously machined accents, these rims will generate compliments (and probably some envy).
The Ion 147 is available in 17” and 20” sizes and a range of bolt patterns and offsets to fit a variety of trucks, SUVs and CUVs.
Other features of the Ion Alloys 147 include:
Triple-spoke design provides a unique look that stands out.
One-piece, cast aluminum construction is lightweight yet extremely durable.
Deep, gloss black finishes coordinate with any paint color.
Two sizes with multiple bolt patterns and offsets fit a range of vehicles.
Ion Alloys 147 Warranty
Ion Wheels are covered by a limited lifetime structural warranty and a one-year finish warranty.
Mount a set of rough and ready all-terrain tires on these rims so you’re set for your next off-road excursion. Put together a custom tire and wheel package and you’ll save time and money by taking advantage of one low installation price, along with the convenience of a single appointment.
When you’re ready for your rims to get noticed, choose a set of Ion Alloys 147.
RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 17.0" - 20.0" |
RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 9.0" - 10.0" |
BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-127.0 - 8-180.0 |
OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -19 - 18 |
HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 78.1 - 125.2 |
NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 - 8 |
LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2500.0 LBS - 3800.0 LBS |
