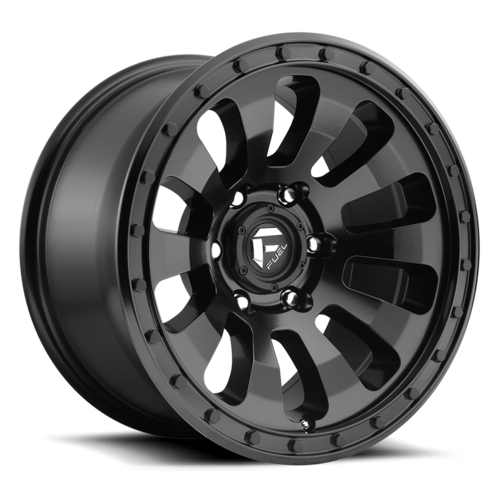

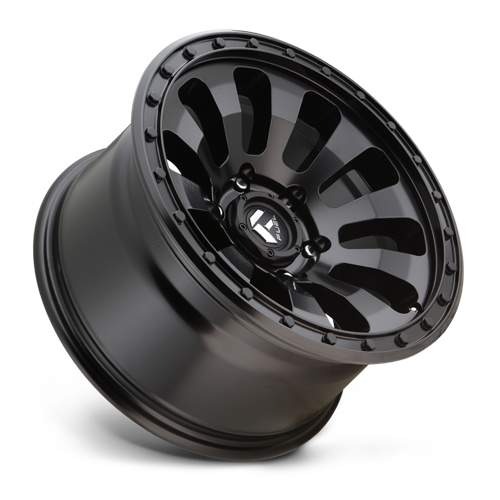

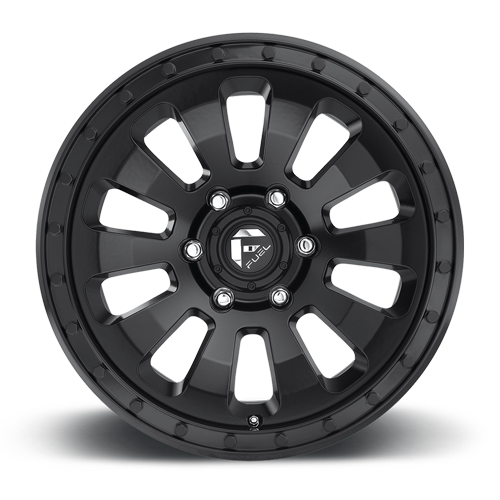

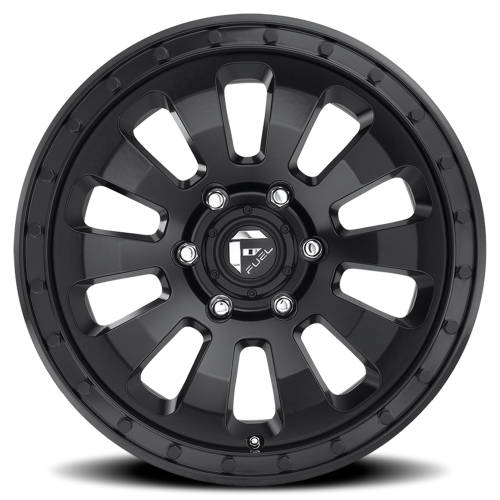

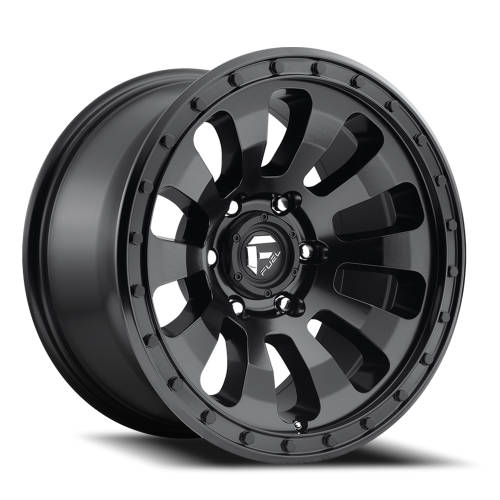

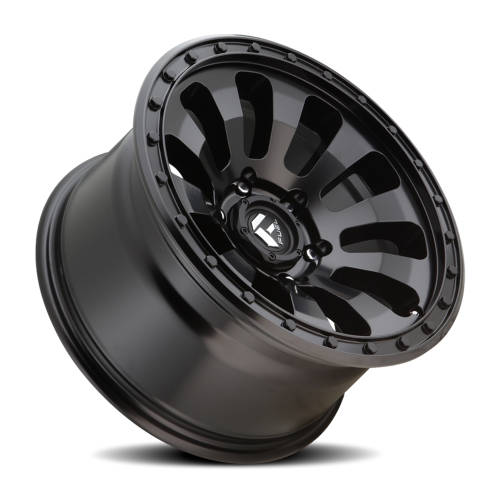

Fuel Wheels Tactic D630
Fuel Tactic
Success is based on a good plan so choose the Fuel Tactic off-road wheel to conquer the trail!
Fuel Tactic Features
The Fuel Tactic is an off-road wheel with highly engineered features to ensure you have a good time out there in the wilderness. Not only does it perform beautifully, it also looks the part with tactical and manufactured detailing to live up to its name.
The lip ring is lined with bolts, hailing to its off-road ancestry and tactical namesake. This is a concave style wheel with inset hub center and face. This modular style wheel features elongated oblong cut outs to lessen the wheel’s unsprung weight. The lug bolts are exposed and situated around the screw-on center cap featuring the Fuel brand logo.
Other Fuel Tactic features include:
An awesome array of finishes including black with machined lip (D629), matte black (D630), matte gunmetal with black bead ring (D648) and bronze with black bolts (d678).
With its huge spectrum of sizes from 16’’–20’’ and five and six lug bolt applications, the Tactic is the right option for a wide variety of vehicles.
The simulated beadlock gives you the off-road look without the hassle and maintenance of a true beadlock ring.
Fuel Tactic Warranty
Fuel Off-Road Wheels offers a lifetime structural defect warranty against defects in workmanship and materials.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 16.0" - 20.0" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 8.0" - 9.0" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-127.0 - 6-139.7 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -12 - 20 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 78.1 - 110.1 |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 - 6 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2300.0 LBS - 2500.0 LBS |
