American Outlaw Patrol

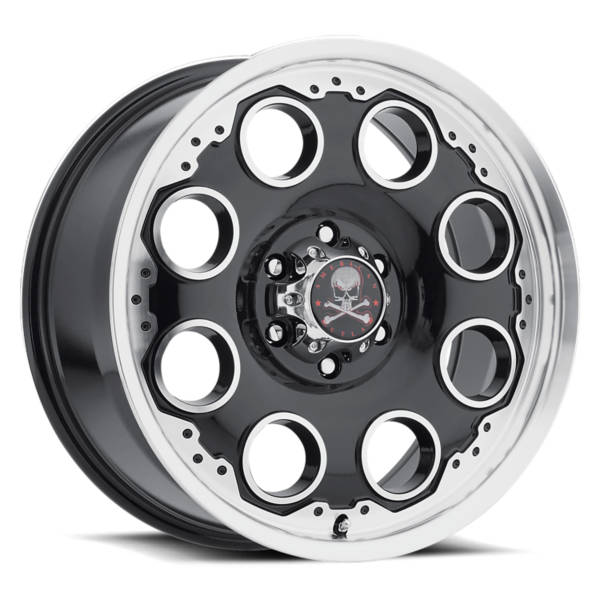

The American Outlaw Wheels Patrol is a full face, modular wheel design. This wheel features detailed accents around each window cut-out along with divots cast into the lip of the wheel. It includes a bolt-on center cap with the American Outlaw brand logo and is built in popular sizes and finishes like full painted matte black and black and machined , both offer a clear coat for protection from the elements. The Patrol adds a modern feel to a classic modular style design.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 18.0" - 20.0" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 8.5" - 9.0" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-127.0 - 6-139.7 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | 10 - 18 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 10.0 |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 - 6 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2400.0 LBS |
