$181.00 /EA
Deals
5% Military Discount for active duty, veterans, and reserves. (Cannot be combined with America's Tire credit card 5% savings offer)
learn more about this discountWe can usually get these tires even sooner via transfer from a different store or nearby warehouse. Need it now? Call store -650-988-9611
product info

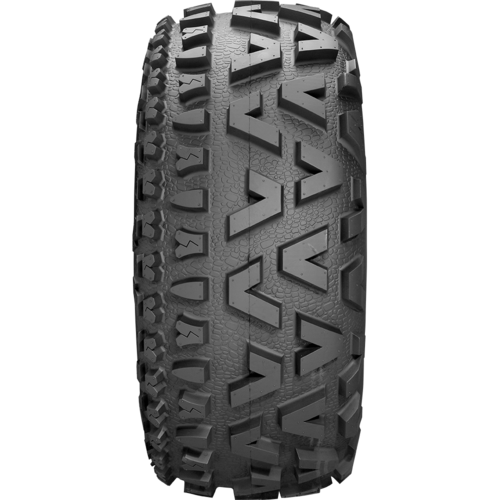

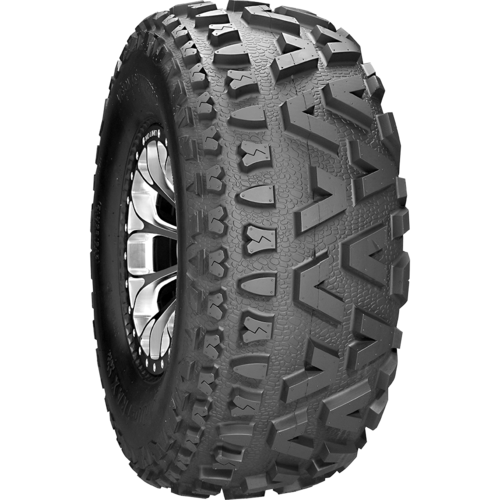

Vision Duo-Trax
Get great all-terrain motorsports performance from the Vision Tires VS396 Duo Trax ATV/UTV tire. This quad bike tire features a unique asymmetrical tread design that delivers powerful traction on varied surfaces, including mud, hardpack, and snow. It also gives you the toughness needed for off-road adventures, using 6-ply rated construction that resists impacts and punctures. For smooth performance, the tire features a radial design that increases handling and stability at high speeds.
UNIFORM TIRE QUALITY GRADE (UTQG)Uniform Tire Quality Grade
TreadwearN/A
TractionN/A
TemperatureN/A
| SECTION WIDTH Measures the width of the tire from sidewall to sidewall, which is mounted on a wheel and inflated. | 26 |
| ASPECT RATIO Determines the sidewall height of the tire, based on the width. | 9 |
| RIM DIAMETER Measures the rim size from top to bottom (in inches). | 14" |
| OVERALL DIAMETER Measures the tire height from top to bottom when mounted on a wheel and inflated. | 26" |
| RIM WIDTH RANGE The approved range of rim widths this tire can be safely mounted on. | 7.0" - 7.0" |
| WEIGHT The weight of the tire measured in pounds (weight of tire only). | 27 LBS |
| TREAD DEPTH Measured in /32 of an inch to determine the height of the tread block from top to bottom. | 21/32" |
| LOAD INDEX Determines the weight a tire can carry at maximum air pressure. See load Index chart. | 64 |
| LOAD RANGE Determines the ply rating of the tire. Should be replaced with the same or higher rating. | CP |
| MAX PSI The max psi is the highest pressure the tire can hold, but should be inflated to your vehicle specifications not exceeding this amount. | 15 PSI |
| SPEED RATING Designation from laboratory testing to determine the maximum speed the tire can travel. Maintain the same speed rating or higher for replacement. | Up to 62 mph |
| SIDEWALL DESC. The sidewall designation to describe the lettering on the sidewall. | Black Side Wall |
| VPN Vendor Product Number | W396269146 |
| GTIN Global Trade Item Number | 886821098361 |
